800-10-020-10-001000

Headers, Male Pins Overview

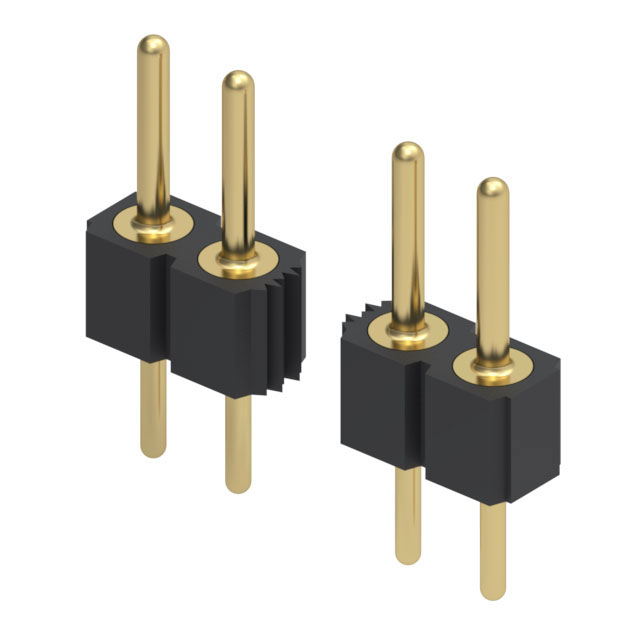

The Mill-Max 800-10-020-10-001000 is a single-row header connector with 20 positions and a 0.100-inch (2.54mm) pitch. Designed for through-hole mounting, it features straight pin configuration and push-pull fastening. The component utilizes gold-plated contacts on both the mating interface and pins, ensuring reliable signal transmission. It is rated for 3A current and 150VDC voltage, operating within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Gold-plated contact surfaces for enhanced conductivity
• Push-pull fastening mechanism for secure retention
• Through-hole termination method for PCB integration

Headers, Male Pins Applications

• General-purpose board-to-board interconnections
• Industrial control system circuitry
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 20-position configuration and 2.54mm pitch specifications. Confirm that the gold plating thickness meets application requirements for corrosion resistance and electrical performance. Ensure compatibility with standard through-hole soldering processes and verify that the push-pull locking style aligns with the mechanical design constraints of the target assembly.

Headers, Male Pins Selection Notes

Select this component when a robust, high-reliability connection is needed for standard spacing applications. The gold plating offers superior durability compared to tin alternatives in corrosive environments. The push-pull feature provides mechanical stability without requiring additional screws or clips. Consider the 3A rating to ensure adequate capacity for the intended load currents.

Headers, Male Pins Part Context

This component belongs to the Mill-Max 800 series, which specializes in precision-machined interconnect solutions. The series is known for high reliability and consistent manufacturing standards. As a header connector, it serves as the male counterpart to female sockets or receptacles, facilitating modular electronic designs.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 20-position, 2.54mm pitch headers with identical through-hole mounting and gold plating. Verify that any alternative maintains the same push-pull fastening mechanism and current/voltage ratings to ensure functional equivalence.
