800-10-020-20-001000

Headers, Male Pins Overview

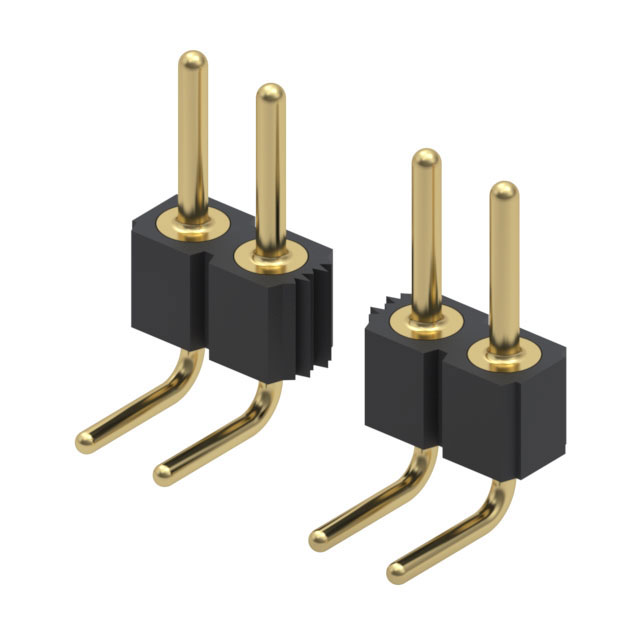

The Mill-Max 800-10-020-20-001000 is a single-row header connector designed for through-hole mounting. It features 20 positions with a 0.100-inch (2.54mm) pitch. The contacts are gold-plated bronze, providing reliable signal transmission. The housing is constructed from black PCT polyester reinforced with glass fiber, rated UL94 V-0 for flammability. This component supports a rated current of 3A and a voltage of 150VDC, operating within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Gold-plated bronze contacts ensure corrosion resistance and stable electrical performance.
• Glass-fiber reinforced PCT insulation provides high thermal stability and mechanical strength.
• Through-hole termination facilitates secure PCB integration.
• UL94 V-0 rated material ensures compliance with safety standards.

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Industrial control system board-to-board connections
• Consumer electronics internal wiring
• Test and measurement equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific contact plating thickness and terminal length against the official datasheet before procurement. Confirm that the supplier provides RoHS compliance documentation. Ensure the ordering suffix matches the required pin configuration and packaging type. Cross-reference the manufacturer part number with distributor catalogs to avoid counterfeit components.

Headers, Male Pins Selection Notes

Select this connector when a standard 2.54mm pitch header is required for low-current applications up to 3A. Consider the 150VDC rating and -55°C to 125°C operating range for environmental suitability. Evaluate the through-hole mounting style against available PCB space and assembly methods. Compare physical dimensions with mating connectors to ensure compatibility.

Headers, Male Pins Part Context

This component belongs to the 800 series of precision headers manufactured by Mill-Max. The series offers various pin counts and configurations for diverse interconnect needs. As a standard industrial connector, it supports reliable signal transfer in compact designs. The product line emphasizes durability and consistent performance across demanding environments.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 20-position, 2.54mm pitch through-hole headers with similar current ratings. Verify pinout compatibility and mechanical fit before substitution. Check if alternative manufacturers offer equivalent gold-plated contacts and UL94 V-0 insulation materials.
