800-80-033-30-001101

Headers, Male Pins Overview

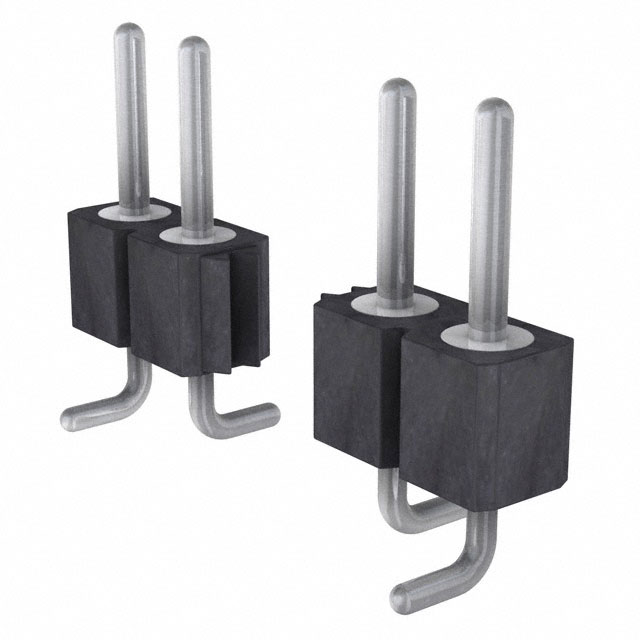

The Preci-Dip 800-80-033-30-001101 is a single-row male header connector from the 800 series, designed for through-hole vertical PCB mounting. It features 33 positions with a 2.54 mm (0.100 inch) pitch. The contacts are made of brass with tin plating, rated for 3A current and 150V DC. The insulator is glass-reinforced PCT polyester, black in color, with UL94 V-0 flammability rating. Operating temperature range is -55°C to 125°C.

Headers, Male Pins Feature Summary

• Single-row male pin header configuration for board-to-board or wire-to-board interconnections
• Through-hole vertical mounting style with solder tail termination
• Glass-reinforced thermoplastic insulation housing providing mechanical stability
• Tin-plated brass contacts ensuring reliable conductivity and corrosion resistance

Headers, Male Pins Applications

• General electronic equipment signal and power distribution
• Industrial control system interface connections
• Consumer electronics internal circuit board linking
• Telecommunications hardware assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Preci-Dip documentation to confirm exact pin count, orientation, and termination type. Ensure compatibility with mating receptacles regarding pitch and contact geometry. Check for RoHS compliance status if required by project specifications. Confirm lead length and insulator height match PCB layout constraints.

Headers, Male Pins Selection Notes

Select this component when a high-density single-row connection is required with through-hole reliability. The 2.54 mm pitch offers standard spacing for general-purpose applications. Consider the 3A current rating for load requirements. Verify that the vertical orientation fits within the available enclosure height. Compare against surface mount alternatives if space constraints dictate a lower profile.

Headers, Male Pins Part Context

This part belongs to the Preci-Dip 800 series, which provides a range of single-row male headers. The series typically includes variants with different pin counts, orientations (vertical and right-angle), and termination methods (through-hole and surface mount). The 800 series is characterized by its use of PCT insulation and standard 2.54 mm pitch, making it a common choice for legacy and modern mixed-signal designs.

Headers, Male Pins FAQ

What is the material of the insulating housing?

The insulating housing is made of glass-reinforced polyterephthylate (PCT) polyester.

Is this connector compatible with standard 2.54 mm pitch sockets?

Yes, the 2.54 mm pitch ensures compatibility with standard mating receptacles designed for this spacing.
