800-V3-026-20-001101

Headers, Male Pins Overview

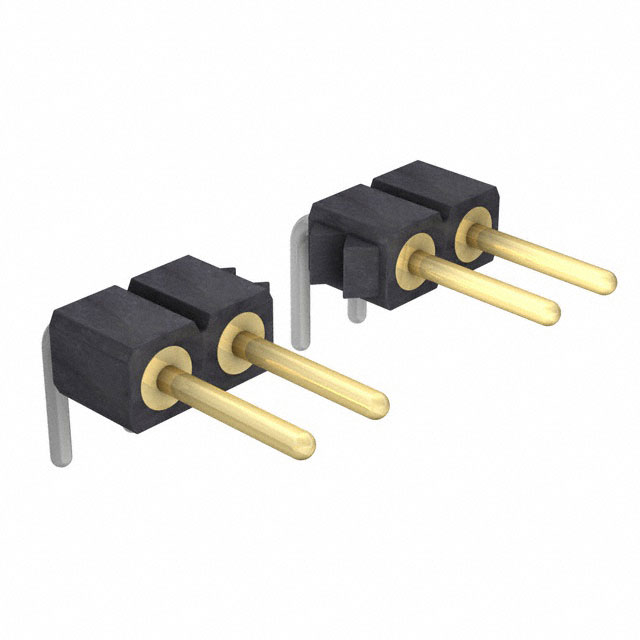

The Preci-Dip 800-V3-026-20-001101 is a single-row male header connector from the 800 series, designed for board-to-board applications. It features 26 positions with a 2.54 mm (0.100 inch) pitch and utilizes through-hole right-angle mounting. The contacts are made of brass with tin plating on the tail and gold plating on the mating interface, which has a thickness of 29.5 µin (0.75 µm). Rated for 3A current and 150V DC, it operates within a temperature range of -55°C to 125°C. The insulator is constructed from glass-filled PCT polyester resin, rated UL94 V-0, and the connector is unshrouded.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting configuration for compact board-to-board interconnection
• Gold-plated mating contact surfaces ensuring reliable signal transmission
• Tin-plated brass tails optimized for standard soldering processes
• High-temperature resistant glass-filled polyester insulation

Headers, Male Pins Applications

• Industrial control system circuit boards
• Consumer electronics internal connections
• Telecommunications equipment interfaces
• General-purpose computing hardware assemblies

Headers, Male Pins Procurement Notes

Verify that the specific suffix 'V3' in the part number corresponds to the required gold plating specification, as standard 800 series variants may differ. Confirm the 26-position count matches the design requirements. Ensure compatibility with the mating socket's pin length and insulation height. Check for RoHS compliance status if environmental regulations apply to the final assembly.

Headers, Male Pins Selection Notes

Select this component when a right-angle, single-row connection is required with a 2.54 mm pitch. The gold-plated contacts distinguish it from standard tin-only versions, offering better corrosion resistance for mating cycles. Consider the 3A rating against the actual load current. The unshrouded design allows for flexible stacking but requires precise alignment during assembly.

Headers, Male Pins Part Context

This connector belongs to the Preci-Dip 800 series, a widely used line of PCB headers. The 'V3' designation typically indicates specific plating characteristics compared to the base 800 model. It serves as a male header counterpart to female sockets, facilitating modular electronic designs where vertical or angled space-saving connections are necessary.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 26-position, 2.54mm pitch right-angle headers from manufacturers such as Samtec or Molex. Ensure the replacement maintains the same current rating, voltage rating, and insulation material flammability class (UL94 V-0).
