801-83-015-30-001101

Headers, Receptacles, Female Sockets Overview

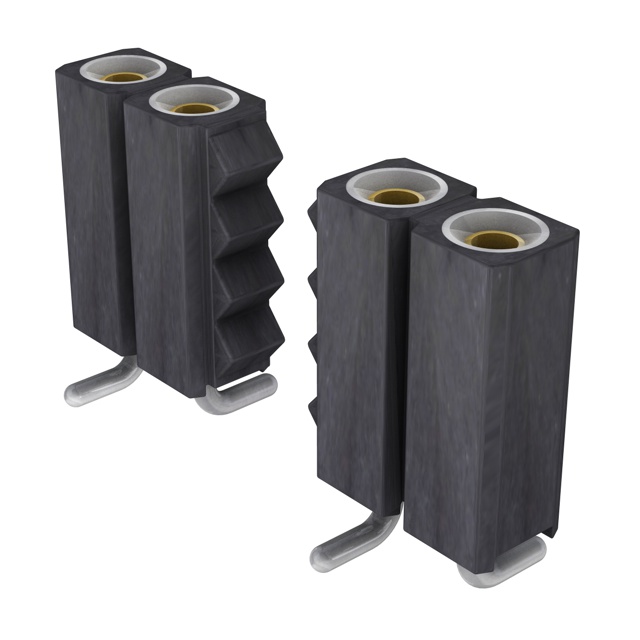

The Preci-Dip 801-83-015-30-001101 is a surface mount socket connector featuring 15 positions with a 2.54 mm (0.100 inch) pitch. It utilizes a single row of female contacts made from beryllium copper, plated with 29.5 µin (0.75 µm) of gold for the mating interface and tin on the termination pins. The housing is constructed from black PCT polyester reinforced with glass fiber, rated UL94 V-0 for flammability. Rated for 3A current and 150V DC, it operates within a temperature range of -55°C to 125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Surface mount design with push-pull locking mechanism
• Gold-plated beryllium copper contacts for reliable signal transmission
• High-temperature resistant PCT insulation material

Headers, Receptacles, Female Sockets Applications

• Board-to-board stacking connections
• High-density electronic assemblies
• Consumer electronics internal interconnects

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix codes against official Preci-Dip documentation to confirm exact plating thickness and packaging variations. Ensure compatibility with automated surface mount placement equipment regarding the component's physical dimensions and thermal profile requirements during soldering processes.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, surface-mount female connector is required for high-density applications. The 2.54 mm pitch offers standard spacing compatibility, while the gold plating ensures durability in frequent mating cycles. Consider the 15-position count and single-row layout for space-constrained PCB designs requiring robust mechanical retention.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Preci-Dip 801 series, which specializes in high-reliability rectangular connectors. The 801-83 designation indicates a socket variant with specific mounting and contact configurations. This series is widely used in industrial and commercial electronics where stable electrical performance under varying environmental conditions is critical.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must match the 15-position count, 2.54 mm pitch, SMD mounting style, and female contact type. Verify that alternative suppliers provide equivalent gold plating thickness and UL94 V-0 rated insulation materials to maintain thermal and fire safety compliance.
