801-83-031-10-001101

Headers, Receptacles, Female Sockets Overview

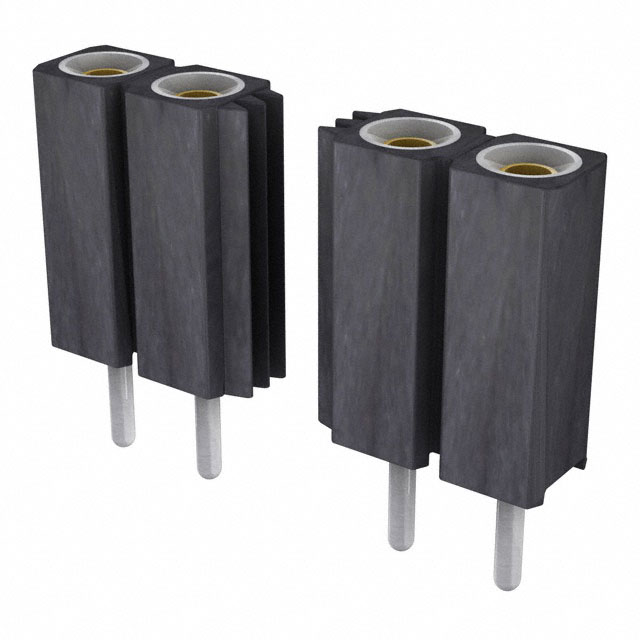

The Preci-Dip 801-83-031-10-001101 is a single-row female socket connector from the 801 series, designed for board-to-board applications. It features 31 positions with a 2.54mm (0.100 inch) mating pitch and utilizes through-hole termination. The contacts are made of beryllium copper with gold plating on the mating interface and tin plating on the tail. Rated for 3A current and 150V DC, it operates within a temperature range of -55°C to 125°C. The housing is constructed from black glass-filled PCT polyester with UL94 V-0 flammability rating.

Headers, Receptacles, Female Sockets Feature Summary

• Single-row vertical female socket configuration for direct PCB mounting
• Gold-plated beryllium copper contacts ensure reliable signal transmission
• Glass-filled PCT insulation provides structural stability and flame resistance

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnection systems
• Industrial control circuitry
• Electronic instrumentation modules

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific part number matches the required 31-position count and single-row layout. Confirm that the gold-plated contact finish aligns with the application's conductivity requirements. Ensure the through-hole mounting style is compatible with the target PCB fabrication capabilities and soldering processes.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a high-density single-row female connection is required. The 2.54mm pitch offers standard spacing compatibility. Choose this variant over tin-only options if superior corrosion resistance and lower contact resistance are necessary for the operational environment.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the Preci-Dip 801 series, which specializes in precision rectangular sockets. The series is characterized by its use of beryllium copper contacts and various insulation materials. This specific model represents a high-pin-count variant suitable for complex data or power distribution needs within compact form factors.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other 31-position, 2.54mm pitch single-row female sockets from the same manufacturer series, such as the 801-83-031-10-001101 equivalents with identical pin counts and mounting styles.
