801-83-031-10-458101

Headers, Receptacles, Female Sockets Overview

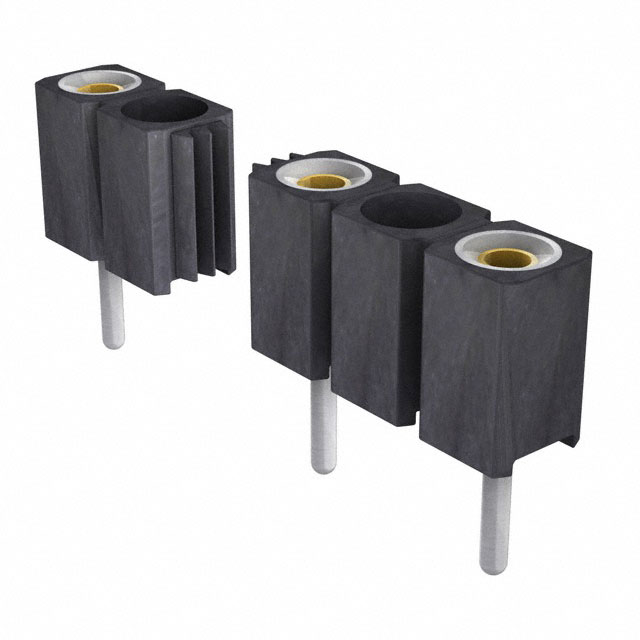

The Preci-Dip 801-83-031-10-458101 is a rectangular board-to-board socket connector designed for PCB mounting. It features 16 positions in a single row with a 0.200-inch (5.08mm) pitch. The connector utilizes through-hole termination and push-pull fastening. Contact surfaces are gold-plated on the mating interface with a thickness of 29.5µin (0.75µm), while tails are tin-plated. Constructed from copper beryllium contacts and PCT insulation, it supports a rated current of 3A and operates within a temperature range of -55°C to 125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Push-pull locking mechanism ensures secure board-to-board connection
• Gold-plated mating contacts provide reliable conductivity
• High-temperature resistant PCT insulation material
• Through-hole solder tail termination for stable PCB mounting

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnects in electronic assemblies
• Industrial control system circuit boards
• Communication equipment internal connections

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific part number matches the required 16-position configuration and 5.08mm pitch before ordering. Confirm that the push-pull style is compatible with the assembly design. Ensure the operating environment falls within the specified -55°C to 125°C range. Check for any specific RoHS or REACH compliance requirements relevant to the target market regulations.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a high-reliability board-to-board connection is needed with a 5.08mm spacing. The push-pull feature is suitable for applications requiring frequent mating cycles or vibration resistance. Consider the 3A current rating and 150VDC voltage limit for electrical compatibility. The low-profile design fits standard PCB stack-up requirements.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the Preci-Dip 801 series, which specializes in rectangular socket connectors. The series offers various position counts and pitch options. The 801-83 variant specifically denotes the straight socket style with through-hole termination. It is commonly paired with matching header connectors from the same manufacturer family.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible mating headers include Preci-Dip part numbers such as 800-10-031-20-101101, 800-V3-031-20-101101, and 800-80-031-20-101101. These alternatives share the 16-position count and 5.08mm pitch specification. Verify mechanical dimensions and contact plating requirements before substituting.
