801-87-011-10-132101

Headers, Receptacles, Female Sockets Overview

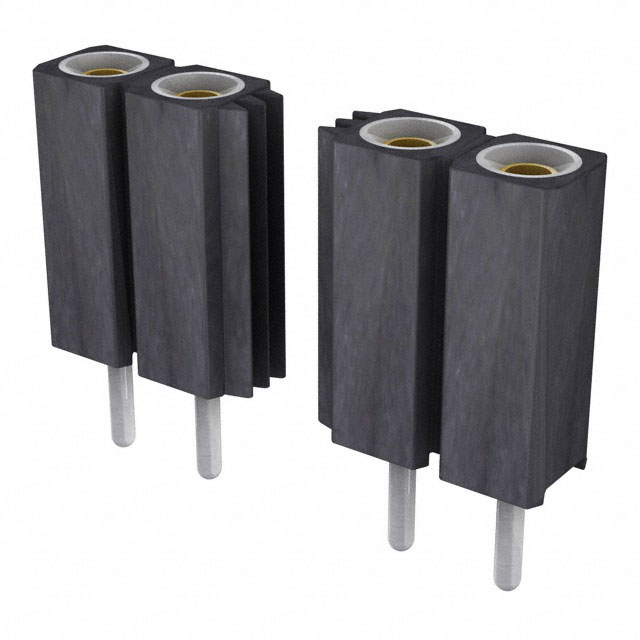

The Preci-Dip 801-87-011-10-132101 is a 11-position socket connector designed for board-to-board applications. It features a 0.100-inch (2.54mm) pitch and utilizes through-hole termination for secure PCB mounting. The contacts are gold-plated with a thickness of 29.5µin (0.75µm), while the posts are tin-plated. Constructed from copper beryllium, the contacts ensure reliable electrical performance within an operating temperature range of -55°C to 125°C. The housing is made of black PCT material rated UL94 V-0.

Headers, Receptacles, Female Sockets Feature Summary

• Gold-plated female socket contacts provide corrosion resistance and low contact impedance.
• Through-hole termination ensures stable mechanical fixation on printed circuit boards.
• High-temperature resistant PCT insulation supports operation in demanding thermal environments.

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnection systems
• Industrial control module interfaces
• Consumer electronics internal connections

Headers, Receptacles, Female Sockets Procurement Notes

Verify the exact part number against official Preci-Dip documentation to confirm pin count and plating specifications. Ensure compatibility with mating header dimensions and verify that the through-hole footprint matches the target PCB design requirements before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a single-row female socket with gold contacts is required for high-reliability board-to-board connections. Consider the 0.100-inch pitch and through-hole mounting style for standard PCB layouts. Evaluate the thermal rating and insulation material properties against the specific environmental conditions of the application.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Preci-Dip 801 series of rectangular connectors. It serves as a female counterpart to male headers, facilitating modular electronic assembly. The series is characterized by standardized spacing and robust construction suitable for general-purpose electronic interconnects.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other 11-position, 2.54mm pitch female sockets from Preci-Dip or equivalent manufacturers. Verify that alternative parts match the contact plating, current rating, and mounting style to ensure functional interchangeability without redesigning the PCB footprint.

Headers, Receptacles, Female Sockets FAQ

What is the contact material used in this connector?

The contacts are manufactured from copper beryllium alloy to provide necessary spring force and conductivity.

Is this connector compatible with standard 2.54mm pitch headers?

Yes, the 0.100-inch (2.54mm) pitch spacing allows it to mate with standard industry headers of the same dimension.
