Edgeboard Connectors Overview

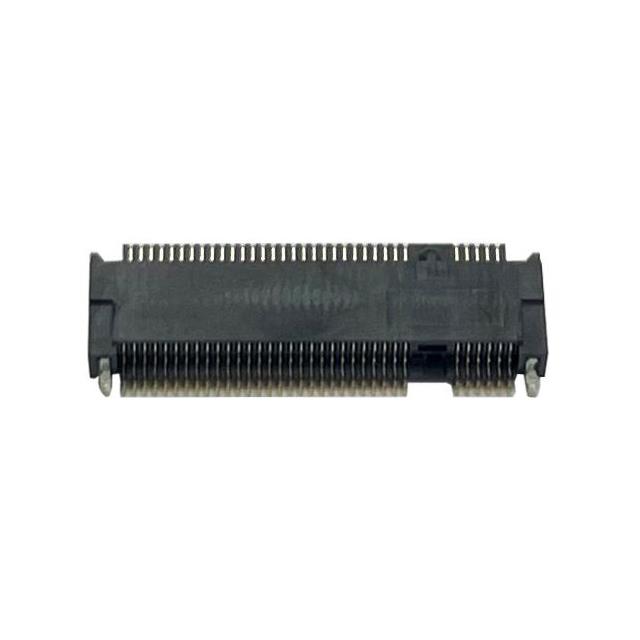

The BellWether 80149-3223 is a surface-mount edgeboard connector designed for M.2 (NGFF) Mini Card applications. It features 67 positions with a female contact configuration and a 0.50mm pitch. The contacts are gold-plated copper alloy, ensuring reliable signal transmission. This component supports mechanical keyway B and is intended for use with 22x12 and 22x11 form factor cards.

Edgeboard Connectors Feature Summary

• Surface mount attachment style for automated assembly
• Gold-plated copper alloy contacts for conductivity
• Compatible with M.2 (NGFF) Mini Card standards

Edgeboard Connectors Applications

• M.2 module interconnection
• Wireless communication devices
• Solid-state storage interfaces

Edgeboard Connectors Procurement Notes

Verify the specific mechanical keyway and pin count against the target PCB design to ensure compatibility with the M.2 card specifications. Confirm that the surface mount footprint matches the manufacturer's recommended land pattern. Check for any required reflow soldering profile adjustments based on the component's thermal characteristics.

Edgeboard Connectors Selection Notes

Select this connector when a low-profile, high-density interface is required for M.2 modules. Ensure the application environment does not exceed the operating voltage limits specified in the datasheet. Consider the mechanical stability provided by the surface mount design for robust board-to-card connections.

Edgeboard Connectors Part Context

This part belongs to the BellWether Edgeboard Connectors series, which specializes in high-reliability interfaces for modern electronic modules. The 80149-3223 model specifically addresses the needs of compact computing and connectivity devices requiring standardized M.2 integration.

Edgeboard Connectors Replacement Considerations

Consult official substitution lists for compatible alternatives. Verify pinout and mechanical dimensions before replacing.
