80152-2021

Edgeboard Connectors Overview

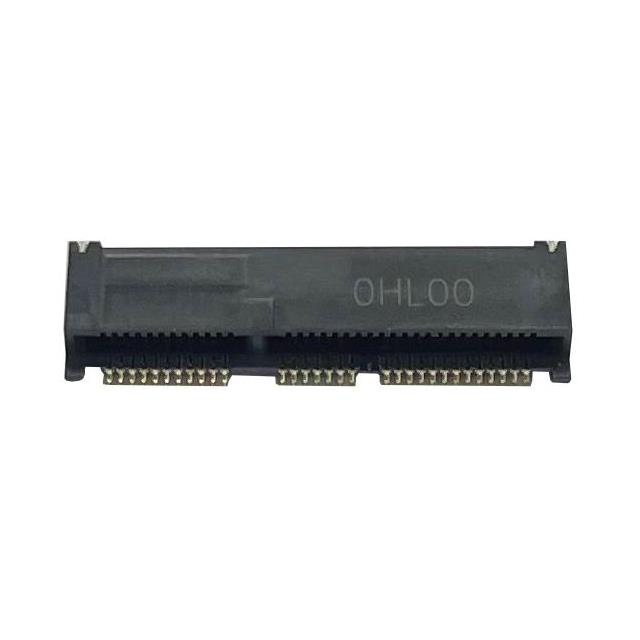

The BellWether 80152-2021 is a 67-position female connector designed for M.2 (NGFF) Mini Card applications. It features a 0.020-inch (0.50mm) pitch and utilizes gold contact plating to ensure reliable signal transmission. The connector housing is black, providing visual identification and standard environmental protection. This component serves as a critical interface for high-speed data and power distribution in compact electronic systems requiring secure card retention.

Edgeboard Connectors Feature Summary

• Designed specifically for M.2 (NGFF) Mini Card form factors
• Female connector configuration with 67 positions
• Gold-plated contacts for enhanced conductivity and corrosion resistance

Edgeboard Connectors Applications

• M.2 SSD mounting interfaces
• Wireless module integration
• Compact computing hardware expansion slots

Edgeboard Connectors Procurement Notes

Verify the specific contact area plating specification required for your application, as BellWether offers variations such as Gold Flash or specific micrometer thicknesses. Confirm mechanical compatibility with the host board footprint and mating card dimensions before ordering. Ensure the selected variant meets the electrical requirements for signal integrity and current carrying capacity.

Edgeboard Connectors Selection Notes

Select this connector when a 67-position female interface is required for M.2 modules. Consider the 0.50mm pitch constraint and the need for gold plating durability. Evaluate whether the standard black housing meets aesthetic or thermal requirements. Compare against other BellWether series if higher density or different pin counts are needed.

Edgeboard Connectors Part Context

This part belongs to the BellWether Edgeboard Connectors family, which focuses on connectivity solutions for modern electronic devices. The brand provides various rectangular connector housings and sockets used by major international technology companies. The 80152 series specifically targets mini-card and edge-board applications requiring robust mechanical and electrical connections.

Edgeboard Connectors Replacement Considerations

Check BellWether datasheets for alternative part numbers with different plating specifications, such as those ending in suffixes indicating Gold Plated variants. Verify that any substitute maintains the 67-position count and 0.50mm pitch to ensure mechanical fit.
