80152-3221

Edgeboard Connectors Overview

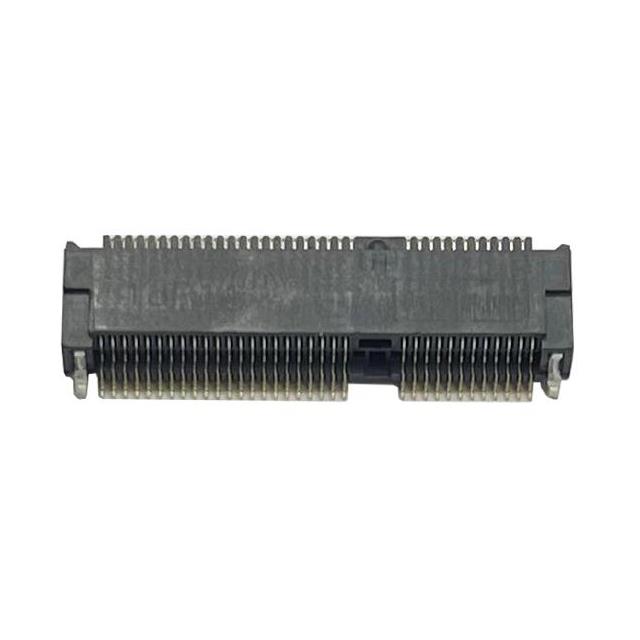

The BellWether 80152-3221 is a 67-position female M.2 (NGFF) Mini Card connector designed for surface mount technology. It features gold-plated contacts with a black housing and a 0.020-inch (0.50mm) pitch. The component supports high-speed data transmission protocols including PCIe Gen3, Gen4, and Gen5, with rates up to 32GT/s. Key electrical specifications include a current rating of 0.5A and an operating voltage of 50V. Mechanical details specify an E-key configuration, a center height of 0.05mm, and a DIP pin length of 1.3mm.

Edgeboard Connectors Feature Summary

• Supports high-speed data transmission via PCIe Gen3/Gen4/Gen5 interfaces
• Features E-key mechanical design for protocol compatibility
• Utilizes gold-plated contacts for reliable signal integrity

Edgeboard Connectors Applications

• M.2 module connectivity in computing systems
• High-speed data interface connections
• PCIe-based expansion card integration

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official BellWether documentation to ensure correct contact plating, housing color, and mechanical keying. Confirm that the surface mount footprint matches the target PCB design. Cross-reference the 67-position count and 0.50mm pitch with system requirements to prevent mechanical incompatibility during assembly.

Edgeboard Connectors Selection Notes

Select this connector when an E-keyed M.2 interface is required for PCIe applications. Ensure the design accommodates the 0.50mm pitch and 67-pin layout. Consider the 0.5A current rating and 50V operating voltage limits relative to the system's power delivery architecture. Validate that the surface mount package aligns with manufacturing capabilities.

Edgeboard Connectors Part Context

This component belongs to the BellWether Edgeboard Connectors family, specifically targeting M.2 standard SMT applications. It serves as a critical interface for modern miniaturized storage and expansion modules. The product line emphasizes high-density connectivity solutions suitable for compact electronic devices requiring robust data transfer capabilities.

Edgeboard Connectors Replacement Considerations

Consult official BellWether substitution guides for compatible alternatives. Verify that any substitute maintains the 67-position count, E-key configuration, and 0.50mm pitch. Ensure electrical ratings and mechanical dimensions match the original design constraints.
