80152-8521

Edgeboard Connectors Overview

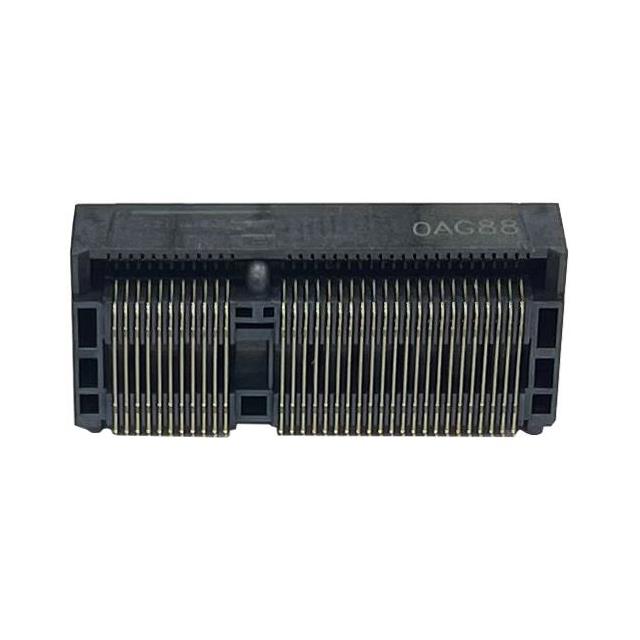

The BellWether 80152-8521 is a surface-mount female connector designed for M.2 (NGFF) Mini Card applications. It features 67 positions with a 0.50mm pitch and gold-plated contacts. The component utilizes copper alloy pins and solder termination, suitable for high-density edgeboard connections.

Edgeboard Connectors Feature Summary

• Designed for secure mating with M.2 (NGFF) Mini Cards
• Supports surface mount technology for automated assembly
• Gold-plated contact surfaces ensure reliable signal transmission

Edgeboard Connectors Applications

• M.2 module interconnection on host motherboards
• High-density edgeboard connector systems
• Compact computing hardware requiring NGFF interface support

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness, as variations exist within the 80152-852* series. Ensure compatibility with the target M.2 card dimensions and verify that the surface mount footprint matches the design layout before procurement.

Edgeboard Connectors Selection Notes

Select this component when a 67-position female connector is required for M.2 interfaces. Consider the 0.50mm pitch constraint and surface mount requirement. Verify that the gold plating specification meets the environmental and durability requirements of the final application.

Edgeboard Connectors Part Context

This part belongs to the BellWether Edgeboard Connectors line, specifically tailored for M.2 (NGFF) Mini Card form factors. It serves as a critical interface component in modern compact electronic devices requiring high-speed data transfer capabilities via the NGFF standard.

Edgeboard Connectors Replacement Considerations

Cross-reference with Foxconn part number 2E0BC21-S85BE-LH for potential functional equivalence in system designs. Verify mechanical and electrical specifications against the original design requirements before substitution.
