80159-4224

Edgeboard Connectors Overview

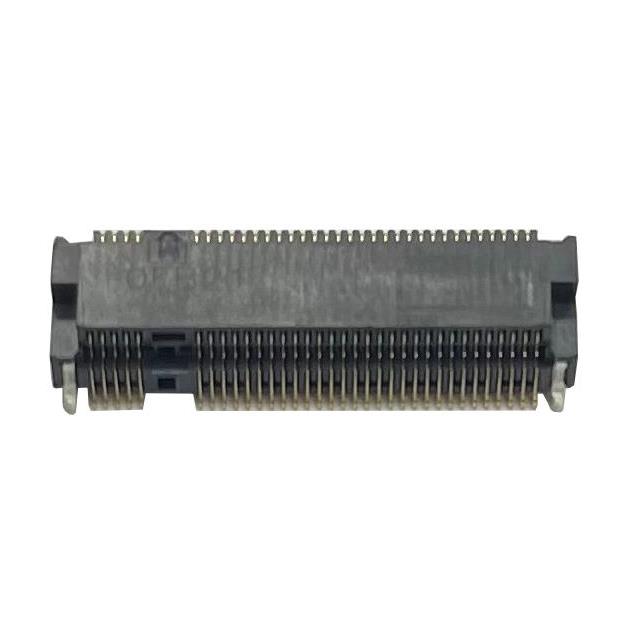

The BellWether 80159-4224 is a 67-position female edgeboard connector designed for M.2 (NGFF) Mini Card applications. It features a 0.50mm pitch and utilizes gold plating on contact areas to ensure reliable signal transmission. The component is housed in a black body, suitable for surface mount technology integration into host boards requiring high-density interconnects for peripheral modules.

Edgeboard Connectors Feature Summary

• Supports high-speed data transfer protocols including PCIe Gen3/Gen4/Gen5 with rates up to 32GT/s
• Engineered for high reliability through robust mechanical design and durable contact materials

Edgeboard Connectors Applications

• M.2 (NGFF) Mini Card interface connections
• High-density PCB designs requiring secure peripheral module attachment
• Systems utilizing PCIe-based expansion cards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official BellWether documentation to confirm exact pin count, height, and plating specifications. Ensure compatibility with the target M.2 card keying type (A, B, E, or M) before procurement. Cross-reference datasheet drawings for mounting hole patterns and board thickness requirements to prevent assembly errors.

Edgeboard Connectors Selection Notes

Select this connector when a 67-position female interface is required for M.2 form factor modules. Consider the 0.50mm pitch constraint for PCB trace routing density. Evaluate the need for gold flash versus thicker gold plating based on environmental exposure and cycle life expectations. Confirm that the host board supports the specified surface mount footprint.

Edgeboard Connectors Part Context

This component belongs to the BellWether Edgeboard Connectors series, specifically tailored for M.2 standard interfaces. The product line emphasizes compliance with international quality standards such as ISO 9001 and IATF 16949, ensuring consistent manufacturing quality for electronic peripheral products used by major technology companies.

Edgeboard Connectors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Verify mechanical dimensions and electrical characteristics against potential alternatives using official cross-reference tools or manufacturer databases.
