80159-4225

Edgeboard Connectors Overview

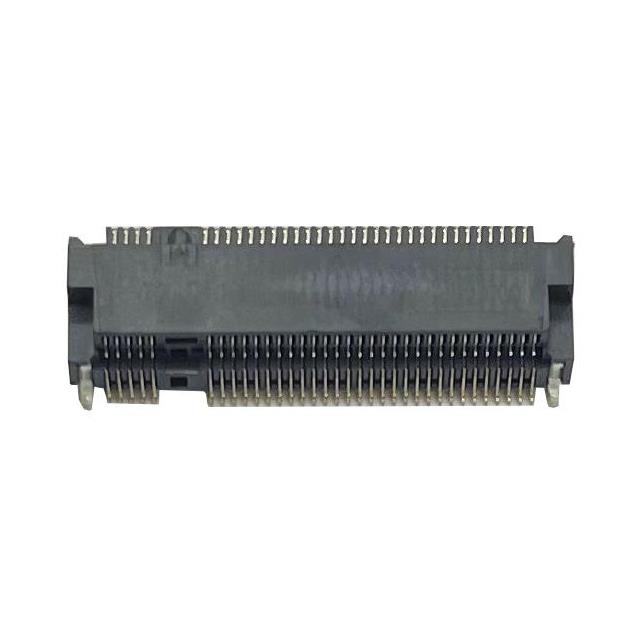

The BellWether 80159-4225 is a 67-position female M.2 (NGFF) connector designed for surface mount technology. It features a 0.5mm pitch and supports high-speed data transmission protocols including PCIe Gen3, Gen4, and Gen5 with rates up to 32GT/s. The component utilizes an M-key configuration and offers gold-plated contacts for reliable signal integrity. It operates within a current rating of 0.5A and a voltage rating of 50V, ensuring compatibility with standard M.2 module requirements.

Edgeboard Connectors Feature Summary

• Supports high-speed data transfer via PCIe Gen3/Gen4/Gen5 interfaces
• Features M-key mechanical design for protocol compatibility
• Provides durable gold-plated contact surfaces

Edgeboard Connectors Applications

• M.2 SSD storage modules
• Wi-Fi and Bluetooth connectivity cards
• Mobile computing devices requiring compact expansion slots

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's latest documentation to ensure correct pin configuration and mounting style. Confirm that the M-key variant matches the target card's edge connector profile. Check for any updated environmental compliance certifications required for the intended market before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a 67-pin M.2 interface is required for high-bandwidth applications. Ensure the host PCB layout accommodates the 0.5mm pitch and surface mount footprint. Validate that the electrical ratings of 50V and 0.5A align with the system's power delivery specifications and thermal management capabilities.

Edgeboard Connectors Part Context

This part belongs to the BellWether M.2 Standard SMT connector family. It is engineered for integration into modern electronic systems requiring compact, high-density interconnects. The series supports various keying options to accommodate different M.2 form factors and protocol standards used in consumer and industrial electronics.

Edgeboard Connectors Replacement Considerations

Consult official substitution lists for compatible equivalents. Verify pin-to-pin compatibility and mechanical dimensions before replacing the original component in existing designs.
