803-83-004-10-216101

Headers, Receptacles, Female Sockets Overview

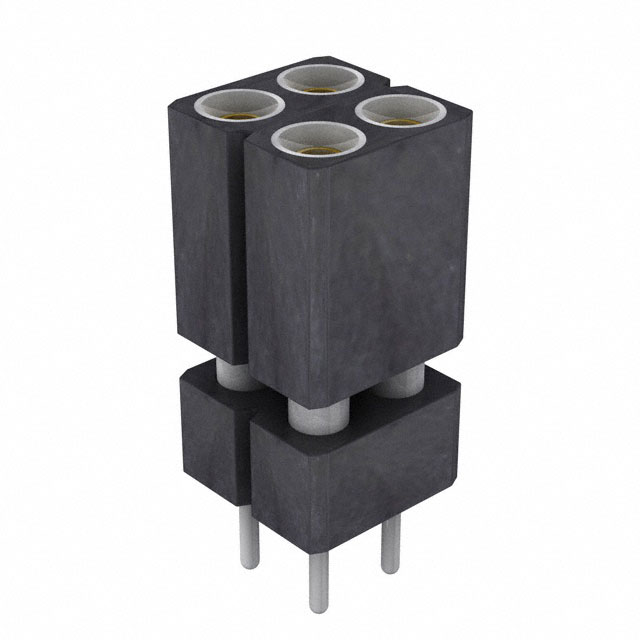

The Preci-Dip 803-83-004-10-216101 is a double-row socket connector with four positions and a 0.100-inch (2.54mm) pitch. Designed for through-hole mounting, it features gold-plated contacts with a mating finish thickness of 29.5µin (0.75µm). The termination length measures 0.118 inches. Constructed with UL94 V-0 rated materials, this component ensures reliable electrical connections in board-to-board applications.

Headers, Receptacles, Female Sockets Feature Summary

• Double-row socket configuration for compact board-to-board interconnects
• Gold-plated contact surfaces ensuring corrosion resistance and stable conductivity
• Through-hole solder tail termination for secure PCB mounting

Headers, Receptacles, Female Sockets Applications

• Board-to-board signal transmission
• Electronic module interconnection
• Industrial control system interfaces

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific part number against official Preci-Dip documentation to confirm the double-row socket configuration and gold plating specifications. Ensure compatibility with mating header dimensions and verify that the through-hole termination style matches the target PCB layout requirements before procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, double-row female connector is required for 2.54mm pitch applications. The gold plating makes it suitable for environments where corrosion resistance is critical. Confirm that the 0.118-inch termination length fits within the available board clearance constraints.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Preci-Dip 803 series, which specializes in high-reliability socket connectors. The series offers various row counts and pin configurations, all maintaining a standard 2.54mm pitch. This specific model provides a four-position solution within that standardized family.

Headers, Receptacles, Female Sockets Replacement Considerations

Cross-reference with other Preci-Dip 803 series double-row sockets or equivalent industry-standard 2.54mm pitch connectors. Verify that any substitute matches the 0.100-inch pitch, double-row layout, and gold contact finish to ensure mechanical and electrical compatibility.
