803-87-012-30-001101

Headers, Receptacles, Female Sockets Overview

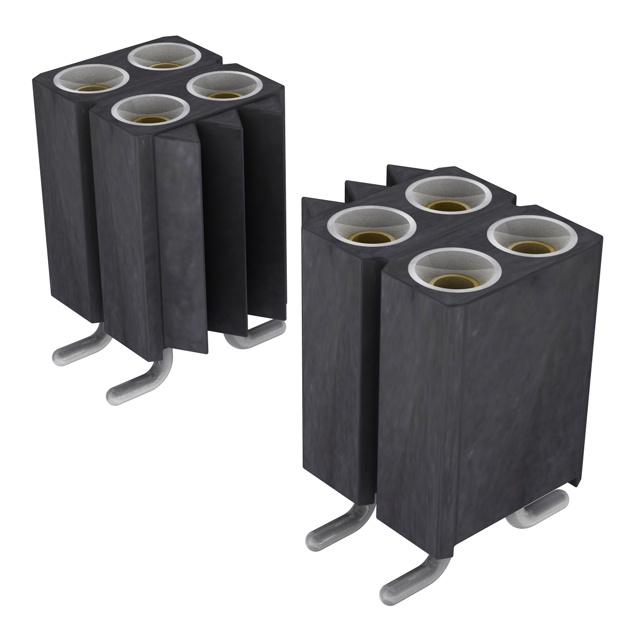

The Preci-Dip 803-87-012-30-001101 is a rectangular female socket connector from the 803 series, designed for board-to-board connections. It features 12 positions arranged in a double-row configuration with a 2.54 mm pitch. The component utilizes surface mount technology (SMT) for PCB installation and employs solder tail termination. Rated for 150V, it supports a current capacity of 12A. The housing is constructed from black glass-filled polyester, ensuring UL94 V-0 flammability ratings. Operating temperatures range from -55°C to 125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Double-row rectangular socket design for compact board-to-board interconnects
• Surface mount termination with solder tails for automated assembly compatibility
• High-current rating of 12A supported by robust contact construction
• Durable black glass-filled polyester insulation with UL94 V-0 classification

Headers, Receptacles, Female Sockets Applications

• Board-to-board signal transmission in electronic assemblies
• Surface mount integration in consumer electronics devices
• Industrial control module interconnections
• Automotive electronic subsystem linking

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against manufacturer documentation to confirm pin count, row configuration, and termination style. Ensure the selected variant matches the required surface mount profile and voltage rating for the target application. Cross-reference the full part number with official datasheets to validate material specifications and compliance certifications prior to procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this connector when a double-row SMT female header is required for high-current applications up to 12A. The 2.54 mm pitch accommodates standard through-hole or surface mount mating pins. Consider the 150V rating and wide temperature range for industrial environments. Verify that the glass-filled polyester housing meets mechanical stress requirements for the assembly process.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Preci-Dip 803 series, which specializes in rectangular socket connectors for board-to-board applications. The series offers various configurations in terms of position count and row arrangement. The 803-87-012-30-001101 specifically denotes a 12-position double-row variant optimized for surface mount processes, distinguishing it from single-row or through-hole alternatives within the same family.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult official substitution lists for compatible equivalents. Generic replacements must match the 2.54 mm pitch, 12-position double-row layout, and surface mount termination type. Verify that alternative components meet the 12A current rating and 150V voltage specification to ensure functional parity.
