8038S43276BMDAADNVE-TR

Crystals Overview

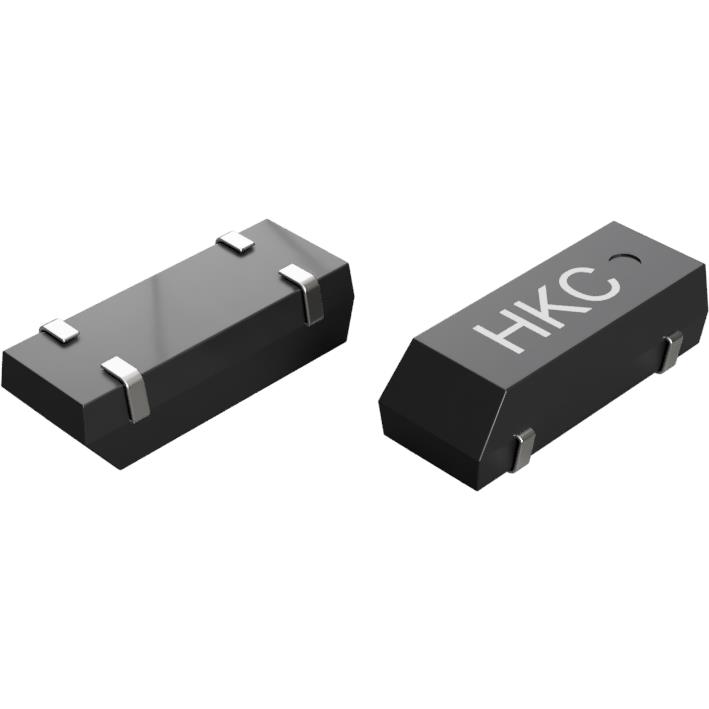

The HKC 8038S43276BMDAADNVE-TR is a crystal oscillator component operating at a fundamental frequency of 32.768 kHz. It features a load capacitance specification of 6 pF and an equivalent series resistance (ESR) of 50 Ohms. The device is housed in a 4-SOJ package with a 5.50 mm pitch, designed for surface-mount applications requiring precise timing signals.

Crystals Feature Summary

• Provides stable 32.768 kHz frequency output
• Utilizes 4-SOJ surface-mount packaging
• Designed for low power consumption applications

Crystals Applications

• Real-time clock circuits
• Microcontroller system clocks
• Portable electronic devices

Crystals Procurement Notes

Verify the specific ordering suffix against official manufacturer documentation to ensure compatibility with required tolerance and temperature range specifications. Confirm that the 4-SOJ package dimensions match the target PCB footprint design constraints before finalizing procurement orders.

Crystals Selection Notes

Select this component when a 32.768 kHz reference signal is required for timekeeping or synchronization tasks. Ensure the 6 pF load capacitance aligns with the host circuit's requirements and verify that the 50 Ohm ESR meets the oscillator circuit stability criteria.

Crystals Part Context

This part belongs to the family of precision crystal resonators used for generating accurate timing references in digital electronics. The 32.768 kHz frequency is standard for binary division to one-second intervals in real-time clock applications.

Crystals Replacement Considerations

Consult official substitution lists for compatible crystals with identical 32.768 kHz frequency, 4-SOJ package, and matching electrical parameters such as load capacitance and ESR values.
