8045H21600BMDAEHECA-CT

Crystals Overview

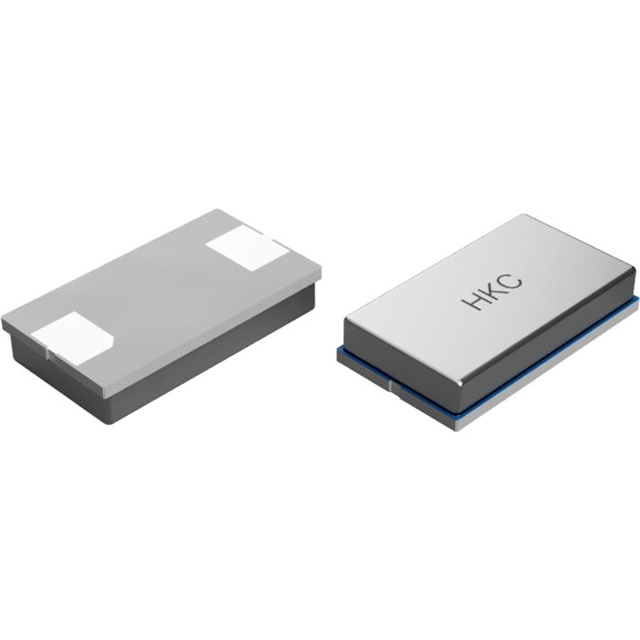

The HKC 8045H21600BMDAEHECA-CT is a 16 MHz fundamental mode crystal oscillator housed in a 2-SMD, No Lead package. It features a frequency stability of ±50ppm and a load capacitance of 10pF with an equivalent series resistance of 30 Ohms. The component operates within a standard temperature range and supports RoHS compliance for lead-free manufacturing processes.

Crystals Feature Summary

• Provides stable 16 MHz oscillation for clock generation circuits
• Utilizes a compact surface-mount package for automated assembly
• Ensures frequency accuracy within specified tolerance limits

Crystals Applications

• General purpose clock sources for digital logic circuits
• Microcontroller system timing references
• Communication interface synchronization modules

Crystals Procurement Notes

Verify the specific suffix designation against manufacturer documentation to confirm exact load capacitance and stability parameters. Ensure that the procurement channel provides original factory-sealed components with traceable date codes to guarantee authenticity and prevent counterfeit substitution in critical electronic assemblies.

Crystals Selection Notes

Select this component when a 16 MHz reference signal is required with moderate stability requirements. Consider the 10pF load capacitance compatibility with the target circuit's input characteristics. Evaluate the 2-SMD form factor against available PCB real estate constraints during the layout phase.

Crystals Part Context

This part belongs to the HKC HX series of MHz crystals designed for general electronic applications. The series offers various frequency options and packaging styles to support diverse consumer and industrial electronics needs while maintaining consistent performance standards across the product line.

Crystals Replacement Considerations

The 8045H21600BMDAEHECA-TR variant shares identical electrical specifications but utilizes tape-and-reel packaging instead of cut tape. Verify package compatibility before substitution to ensure proper handling and placement equipment alignment.
