80602-3021

Edgeboard Connectors Overview

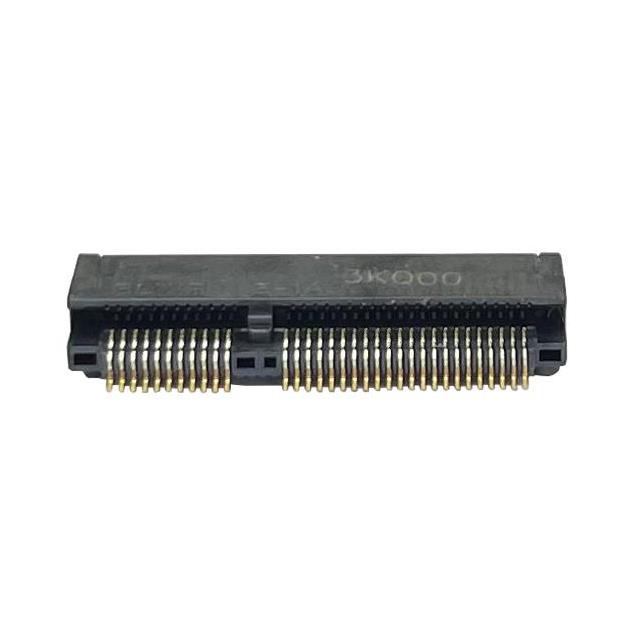

The BellWether 80602-3021 is a surface-mount M.2 (NGFF) Mini Card female connector featuring 67 positions with a 0.50mm pitch. It utilizes gold-plated copper alloy contacts and black housing, designed for high-speed data transmission supporting PCIe Gen3/Gen4/Gen5 standards up to 32GT/s. The component includes board guide features for precise alignment during assembly.

Edgeboard Connectors Feature Summary

• Supports high-speed data transmission protocols including PCIe Gen3, Gen4, and Gen5.
• Features a dual read-out configuration for enhanced signal integrity.
• Incorporates board guide mechanisms to ensure accurate positioning during surface mount assembly.

Edgeboard Connectors Applications

• M.2 (NGFF) Mini Card slot implementation
• High-speed peripheral connectivity modules
• Data storage interface boards

Edgeboard Connectors Procurement Notes

Verify the specific keying variant (A, B, E, or M) required for your application, as the series supports multiple configurations. Confirm that the surface-mount package type matches your PCB design requirements. Ensure compatibility with the intended card thickness and mechanical retention needs before finalizing procurement.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, surface-mount M.2 interface is required for compact designs. The 67-position count suits standard M.2 form factors. Consider the black housing aesthetic if visual consistency with other components is necessary. Verify thermal management capabilities for high-speed PCIe applications.

Edgeboard Connectors Part Context

This part belongs to the BellWether M.2 Standard SMT connector series, designed for modern electronic devices requiring reliable high-bandwidth connections. It serves as a critical interface between the motherboard and expansion cards, facilitating data exchange in consumer electronics and industrial systems.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include the 80602-4021, which shares similar physical dimensions and contact counts but may differ in keying options. Always verify pinout compatibility and mechanical fit before swapping components in existing designs.

Edgeboard Connectors FAQ

What is the contact material composition?

The contacts are made of copper alloy with gold plating to ensure conductivity and corrosion resistance.

Does this connector support PCIe Gen5 speeds?

Yes, the connector is designed to support data rates up to 32GT/s, compatible with PCIe Gen5 standards.
