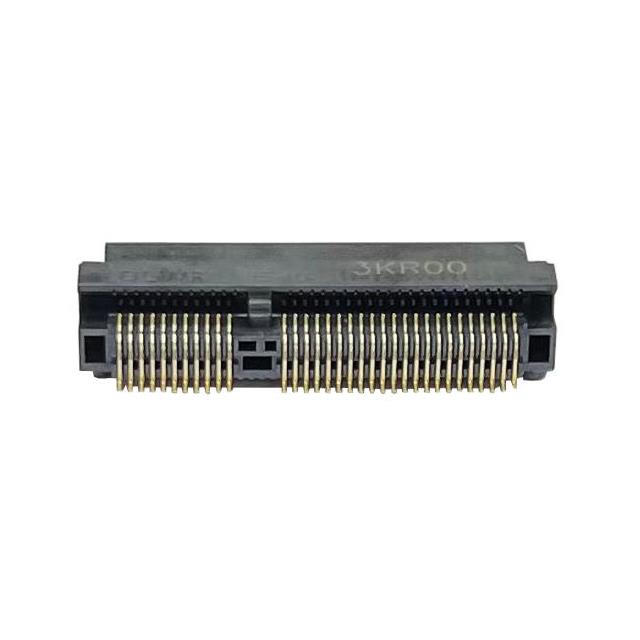

80602-4021 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists BellWether. Its product description is CONN M.2 FMALE 67POS 0.20MM GOLD. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 80602-4021
- Description：CONN M.2 FMALE 67POS 0.20MM GOLD
- Series：-
- Mfr：BellWether
- Package：Tape & Reel (TR)
- Card Type：M.2 (NGFF) Mini Card
- Gender：Female
- Number of Positions/Bay/Row：22; 12, 22; 11
- Number of Positions：67
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：-
- Read Out：Dual
- Features：Board Guide
- Mounting Type：Surface Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：Flash
- Contact Type：-
- Color：Black
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 80602-4021
Edgeboard Connectors Overview
The BellWether 80602-4021 is a 67-position female edgeboard connector designed for M.2 (NGFF) Mini Card applications. It features gold-plated contacts on a copper alloy base, with a black finish. The component utilizes an SMT termination method and is configured as a Key E G variant. The contact arrangement specifies 22 positions in one row and 12 or 11 positions in the other, totaling 67 positions.
Edgeboard Connectors Feature Summary
- Designed specifically for M.2 (NGFF) Mini Card edgeboard connections
- Features gold-plated copper alloy contacts for reliable signal transmission
- Utilizes surface mount technology (SMT) for secure board attachment
Edgeboard Connectors Applications
- M.2 (NGFF) Mini Card interface connections
- Edgeboard connector assemblies requiring Key E G configuration
- Electronic peripheral product integration
Edgeboard Connectors Procurement Notes
Verify that the specific order matches the 67-position female configuration and Key E G designation. Confirm the requirement for gold-plated contacts and SMT termination aligns with the design specifications. Ensure compatibility with M.2 (NGFF) Mini Card standards before procurement to avoid integration issues.
Edgeboard Connectors Selection Notes
Select this component when a dedicated female connector for M.2 (NGFF) Mini Cards is required. The 67-position count and Key E G layout are critical for proper mechanical and electrical alignment. Consider the SMT mounting style and gold contact plating for durability and conductivity needs in edgeboard applications.
Edgeboard Connectors Part Context
BellWether specializes in electronic components and peripherals used by major international technology companies. This connector is part of their edgeboard connector lineup, supporting standard interfaces like M.2. The company provides design and production services for connectors, cables, and related electronic hardware.
Edgeboard Connectors FAQ
What is the contact material for the 80602-4021?
The contacts are made from copper alloy and are plated with gold.
Is this connector compatible with M.2 (NGFF) Mini Cards?
Yes, it is specifically designed as an edgeboard connector for M.2 (NGFF) Mini Cards.
