807-007-453-103

Edgeboard Connectors Overview

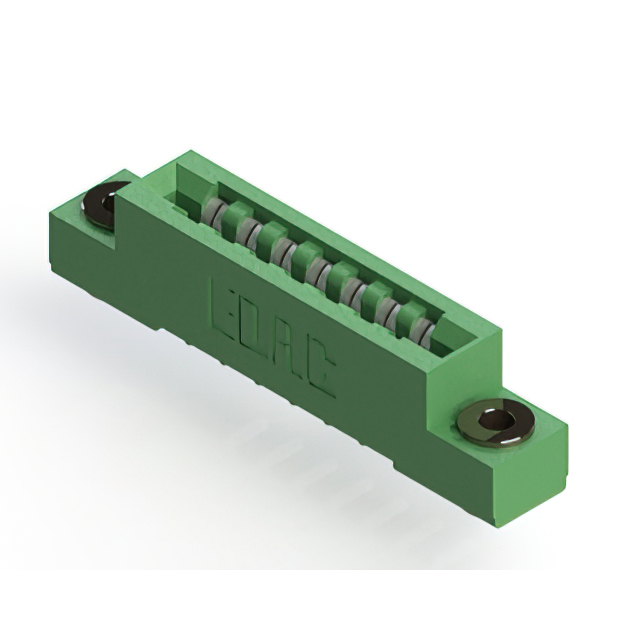

The EDAC Inc. 807-007-453-103 is a standard card edge connector receptacle designed for high-temperature applications within the 807 series. It features 14 positions arranged in a dual-row configuration with a 3.96 mm (0.156 inch) pitch. The component utilizes gold-plated copper alloy contacts and a Diallyl Phthalate (DAP) insulator housing. Rated for 5 A current, it supports board thicknesses between 1.37 mm and 1.78 mm. Operating temperatures range from -40°C to +125°C, ensuring reliability in demanding environments.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design accommodates daughter boards reading both sides
• High-temperature rated construction suitable for harsh operational conditions
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance

Edgeboard Connectors Applications

• Medical interconnect solutions requiring durable connections
• Agricultural technology equipment operating in harsh environments
• Industrial control systems utilizing standard card edge interfaces

Edgeboard Connectors Procurement Notes

Verify the specific pin count and row configuration against the official datasheet before integration. Confirm that the target PCB thickness falls within the specified 1.37 mm to 1.78 mm range to ensure proper mechanical engagement. Check RoHS compliance details if environmental regulations apply to the final assembly. Ensure compatibility with the required soldering process for through-hole mounting.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided card edge interface is required for compact board-to-board connections. The 3.96 mm pitch allows for standard spacing while maintaining a low profile. Consider the high-temperature rating if the application exceeds standard commercial limits. The DAP housing material offers stability, but verify mechanical fit against existing panel or chassis constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 807 High Temp Series, which specializes in robust interconnect solutions. The series is engineered for durability in medical and agricultural sectors. The 807-007-453-103 specifically addresses needs for dual-row connectivity with high thermal resilience, distinguishing it from lower-rated commercial alternatives.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 14-position dual-row layout and 3.96 mm pitch. Verify that alternative components support the same board thickness range and temperature specifications. Cross-reference contact plating and housing materials to maintain electrical and mechanical performance equivalence.
