807-010-441-101

Edgeboard Connectors Overview

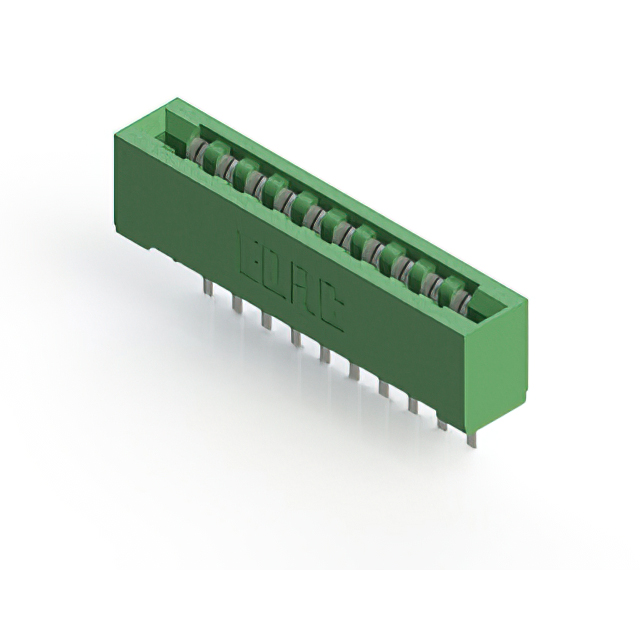

The EDAC Inc. 807-010-441-101 is a standard card edge connector receptacle from the 807 High Temperature Series. It features 20 positions with a 3.96 mm (0.156 inch) pitch and supports a board thickness of 1.57 mm. Designed for panel mount vertical installation, it utilizes gold-plated copper alloy contacts rated for 5 A current. The insulator is constructed from Diallyl Phthalate (DAP), providing an insulation resistance of 5 GOhms and operating within a temperature range of -65°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction using Diallyl Phthalate (DAP) insulator material
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Vertical panel mount design facilitates secure board insertion

Edgeboard Connectors Applications

• Medical interconnect solutions requiring high thermal stability
• Agricultural technology equipment in harsh environments
• Industrial control systems demanding durable connections

Edgeboard Connectors Procurement Notes

Verify the specific contact termination type and row configuration against the official datasheet before procurement. Confirm that the 20-position layout matches the target PCB design requirements. Ensure the operating environment remains within the specified -65°C to +125°C range to maintain performance integrity.

Edgeboard Connectors Selection Notes

Select this component when high-temperature performance is critical for the application. The 3.96 mm pitch and 1.57 mm board thickness compatibility must align with the system's mechanical constraints. Consider the vertical orientation and panel mounting style for integration into the final enclosure design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 807 series, specialized for high-temperature card edge applications. It serves as a robust interconnect solution designed to withstand demanding environmental conditions while maintaining electrical reliability through its specific material composition and contact plating.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC catalog for direct substitutes within the 807 series or compatible 317/307 series variants if pin count or pitch differs. Verify mechanical dimensions and electrical ratings match the original design specifications.
