807-010-521-108

Edgeboard Connectors Overview

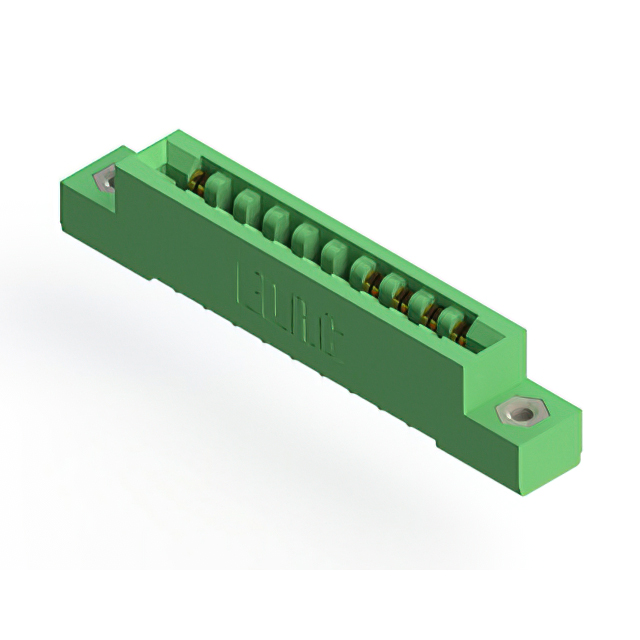

The EDAC Inc. 807-010-521-108 is a high-temperature card edge connector receptacle designed for single-row applications. It features 10 positions with a 3.96 mm (0.156 inch) pitch, accommodating PCBs with a thickness of 1.57 mm (0.062 inch). The component utilizes gold-plated copper alloy contacts and a DAP insulator, supporting an operating temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature capability suitable for demanding environments
• Single-row configuration with gold-plated contacts for reliable signal transmission
• Compatible with standard 0.062-inch thick printed circuit boards

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffixes against official EDAC documentation to ensure correct contact termination style and mounting options. Confirm RoHS compliance status and lead times directly with authorized distributors, as availability may vary by region and supply chain conditions.

Edgeboard Connectors Selection Notes

Select this model when a single-row connection is required for 1.57 mm thick PCBs. Ensure the application environment stays within the specified -40°C to +125°C range. Verify that the 3.96 mm pitch aligns with the board layout requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 807 series, which specializes in high-temperature card edge connectors. The series offers various configurations including dual-edge and single-row options, utilizing durable materials like DAP or PPS insulators to withstand harsh operational conditions across multiple industries.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 807 Series Ordering Guide for direct substitutes. Compatible alternatives within the same series may differ in position count, row configuration, or termination style.
