807-011-501-107

Edgeboard Connectors Overview

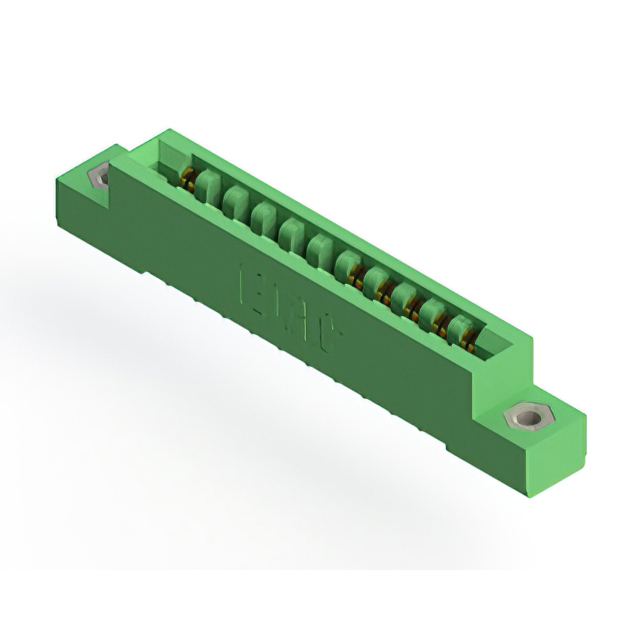

The EDAC Inc. 807-011-501-107 is a standard card edge connector from the 807 High Temp series, designed for reliable signal transmission in demanding environments. This receptacle features 22 positions with a single row configuration and a contact spacing of 3.96 mm (0.156 inches). It utilizes gold-plated copper alloy contacts to ensure low resistance and durability. The unit supports a current rating of 5 A and operates within a temperature range of -40°C to +125°C. Constructed with Diallyl Phthalate (DAP) insulation, it accommodates board thicknesses between 1.37 mm and 1.78 mm.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction using Diallyl Phthalate (DAP) insulator material
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Dual-edge reading capability for secure connection to daughter boards
• Right-angle panel mount design for efficient space utilization

Edgeboard Connectors Applications

• Industrial control systems requiring high thermal stability
• Telecommunications equipment interfaces
• Medical device internal connections
• Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm exact pin count, termination style, and mounting configuration. Ensure compatibility with target PCB thickness and mating card edge dimensions before procurement. Confirm RoHS compliance status if required by project specifications.

Edgeboard Connectors Selection Notes

Select this component when high-temperature performance and robust mechanical connection are prioritized. The 3.96 mm pitch suits applications requiring wider trace spacing. Verify that the right-angle orientation aligns with the system's mechanical constraints and cable routing requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 807 series, a line of high-temperature card edge connectors engineered for harsh operating conditions. The series offers various position counts and termination options, providing flexibility for diverse electronic assembly needs while maintaining consistent electrical performance standards across the product family.

Edgeboard Connectors Replacement Considerations

Consult the EDAC official cross-reference guide for verified substitute part numbers. Ensure any replacement matches the original 3.96 mm pitch, 22-position count, and dual-edge reading specification to maintain mechanical and electrical integrity.
