807-013-458-101

Edgeboard Connectors Overview

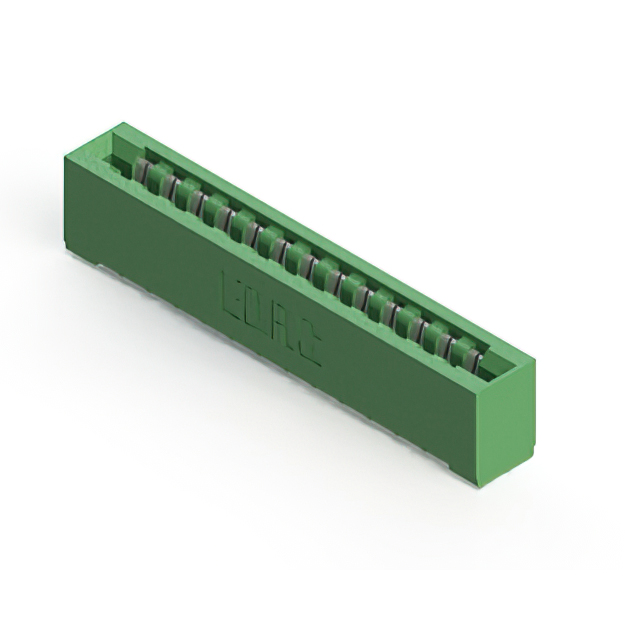

The EDAC Inc. 807-013-458-101 is a high-temperature standard card edge connector receptacle from the 807 series. It features 13 positions with a 3.96 mm pitch and supports single-edge board readout. Designed for through-hole mounting, it accommodates PCB thicknesses between 1.37 mm and 1.78 mm. The contacts are gold-plated copper alloy rated for 5 A, while the housing utilizes Diallyl Phthalate (DAP). It operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction using Diallyl Phthalate housing material
• Gold-plated copper alloy contacts ensuring reliable electrical performance
• Single-row configuration optimized for single-edge card edge applications

Edgeboard Connectors Applications

• High-temperature electronic assembly integration
• Industrial control system interconnects
• Aerospace and defense circuit board connections

Edgeboard Connectors Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number with official EDAC documentation. Confirm RoHS compliance status and REACH SVHC declarations prior to procurement. Ensure supply chain sources provide valid traceability records. Check regional availability restrictions as distribution may vary by location. Validate technical specifications against current datasheets before finalizing orders.

Edgeboard Connectors Selection Notes

Select this model when single-edge card connection is required in high-thermal environments. The 3.96 mm pitch suits specific board layouts requiring wider spacing. Through-hole termination provides mechanical stability for heavy boards. Verify that the target PCB thickness falls within the 1.37 mm to 1.78 mm acceptance range. Consider the 5 A current rating for power distribution needs.

Edgeboard Connectors Part Context

This component belongs to the EDAC 807 Series, a line of high-temperature card edge connectors designed for demanding operational conditions. The series utilizes durable DAP materials to withstand elevated temperatures up to 125°C. Variants within the series differ primarily in position count and row configuration, offering modular solutions for diverse interface requirements.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 807 series receptacles with matching 13-position counts and 3.96 mm pitch. Ensure replacement parts maintain the same single-edge readout orientation and through-hole termination style. Verify identical housing material and contact plating specifications for thermal and electrical equivalence.
