807-013-521-107

Edgeboard Connectors Overview

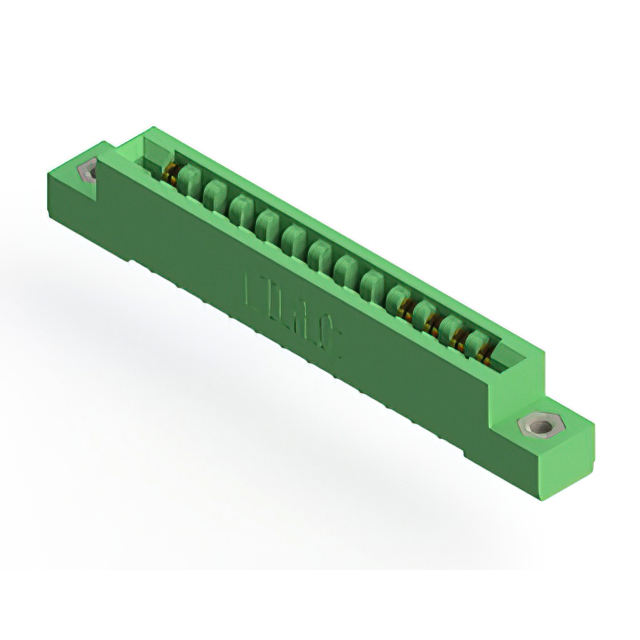

The EDAC Inc. 807-013-521-107 is a standard high-temperature card edge connector from the 807 Series, designed for reliable signal transmission in demanding environments. It features a dual-edge configuration with 26 positions and a precise contact spacing of 0.156 inches (3.96 mm). The unit utilizes gold-plated copper alloy contacts to ensure low resistance and corrosion resistance, housed within a green diallyl phthalate (DAP) insulator body. Rated for 5 A current, it supports PCB thicknesses of 0.062 inches (1.57 mm) nominal. Operating within a temperature range of -40°C to +125°C, this vertical receptacle provides robust performance for industrial applications requiring stable electrical connections.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design accommodates both sides of the daughter board for enhanced connectivity.
• High-temperature diallyl phthalate (DAP) insulator material ensures stability under elevated thermal conditions.
• Gold-plated copper alloy contacts provide durable conductivity and resistance to environmental degradation.
• Vertical panel mount style facilitates secure integration into chassis or enclosure structures.

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature reliability
• Automotive electronics operating in harsh thermal environments
• Communication equipment needing stable card edge interfaces
• Medical devices requiring durable electrical connections

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm compatibility with your PCB layout and thermal requirements. Ensure that the ordering suffix matches the desired termination style and plating specifications. Cross-reference the manufacturer's latest datasheet to validate current availability and any potential design changes. Confirm that the supplier provides genuine components with traceable origin to maintain quality standards in critical applications.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge interface is required for 26-position signals with a 3.96 mm pitch. Consider the 807 series for applications exceeding standard temperature limits due to its DAP construction. Verify that the PCB thickness aligns with the 1.57 mm nominal specification to ensure proper mating force. Evaluate the vertical mounting orientation against spatial constraints within the target assembly to guarantee mechanical fit.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 807 Series, a line of high-temperature card edge connectors engineered for durability. The series offers various position counts and row configurations to suit different density requirements. Components in this family are characterized by their use of high-performance thermoplastics and gold contacts, making them suitable for sectors where standard connectors might fail due to heat or stress.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include other 807-series variants with matching pin counts and spacing. Verify that alternative part numbers retain the dual-edge configuration and DAP insulation properties. Ensure that any replacement maintains the 0.156-inch pitch and compatible PCB thickness specifications to preserve mechanical and electrical integrity.
