807-014-457-101

Edgeboard Connectors Overview

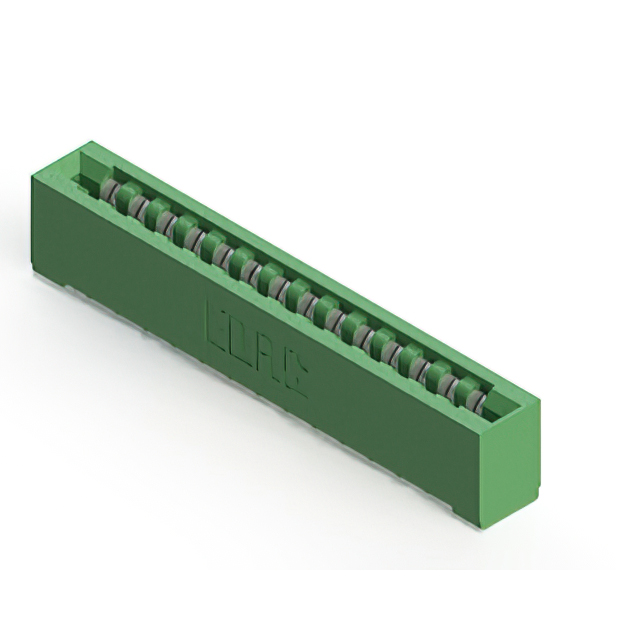

The EDAC Inc. 807-014-457-101 is a standard card edge connector receptacle designed for high-temperature applications. It features 28 positions with a 3.96 mm (0.156 inch) pitch in a dual-row configuration. The component utilizes tin-plated copper alloy contacts and a green Diallyl Phthalate (DAP) insulator. It supports panel mount installation with wire hole termination and accommodates board thicknesses between 1.37 mm and 1.78 mm.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for reliable signal transmission
• High-temperature rated construction suitable for demanding environments
• Panel mount orientation with wire hole termination method

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment internal circuit connections
• Agricultural technology hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating, as variations exist within the 807 series. Confirm that the required board thickness falls within the specified 1.37 mm to 1.78 mm range. Ensure compatibility with the target PCB layout regarding the 3.96 mm pitch and dual-row footprint before finalizing procurement.

Edgeboard Connectors Selection Notes

Select this model when a dual-row, 28-position connection is required with tin-plated contacts. It is appropriate for applications needing panel mounting and wire hole termination. Consider the operating temperature range of -40°C to +125°C to ensure environmental suitability for the specific deployment scenario.

Edgeboard Connectors Part Context

This component belongs to the EDAC 807 High Temp Series, which provides durable interconnect solutions for medical and agricultural sectors. The series is characterized by its ability to withstand harsh conditions while maintaining electrical integrity through standardized dimensions and reliable material selection.

Edgeboard Connectors Replacement Considerations

Cross-reference part numbers such as 807-014-500-202 or 807-014-457-102 for alternative configurations within the same series. Verify that pin count, pitch, and termination style match the original design requirements before substitution.
