807-015-557-112

Edgeboard Connectors Overview

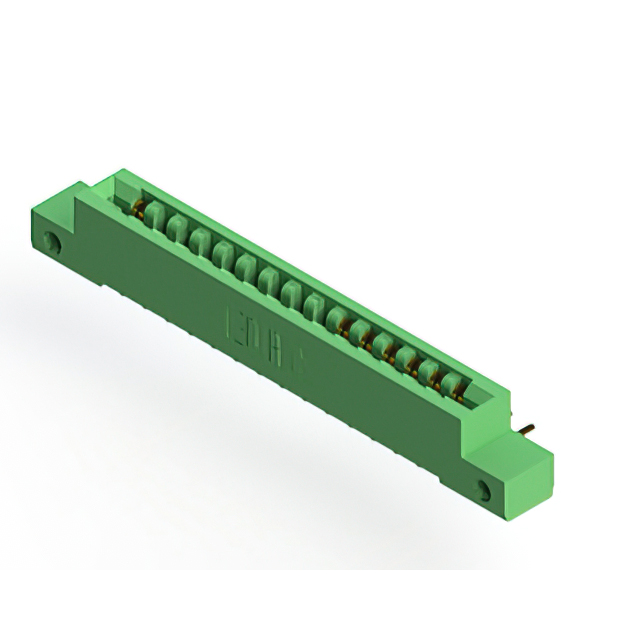

The EDAC Inc. 807-015-557-112 is a standard high-temperature card edge connector receptacle from the 807 Series. It features 30 positions with a 3.96 mm (0.156 inch) pitch and supports dual-edge contact configuration. Designed for panel mount installation, this component utilizes gold-plated copper alloy contacts housed in a green diallyl phthalate (DAP) insulator. The connector accommodates a board thickness of 1.57 mm and employs wire hole termination. It operates within a temperature range of -40°C to +125°C, offering an insulation resistance of 5 GOhms and a current rating of 5 A.

Edgeboard Connectors Feature Summary

• High-temperature capability suitable for demanding thermal environments
• Dual-edge female contact design for robust daughter board connection
• Gold-plated copper alloy contacts ensure reliable conductivity
• Panel mount vertical installation style for secure integration

Edgeboard Connectors Applications

• Digital Multimeters
• PLCs (Programming Logic Controllers)
• Radar processing systems

Edgeboard Connectors Procurement Notes

Verify the specific pin count and orientation against project requirements before ordering. Confirm that the 3.96 mm pitch matches the target PCB layout. Ensure the operating environment stays within the specified -40°C to +125°C range. Check RoHS compliance details if required by regulatory standards. Consult official datasheets for precise mechanical dimensions and mating force specifications.

Edgeboard Connectors Selection Notes

Select this model when high-temperature stability and dual-edge connectivity are required. The 30-position count suits moderate-density interconnect needs. Verify compatibility with 1.57 mm thick circuit boards. Consider the DAP housing material for chemical resistance. Compare against single-row alternatives if space constraints differ.

Edgeboard Connectors Part Context

This component belongs to the EDAC 807 Series, a line of high-temperature card edge connectors designed for rugged applications. The series offers various position counts and tail configurations to accommodate different board thicknesses and mounting styles. The 807-015-557-112 specifically provides a 30-position dual-edge solution with gold plating for enhanced signal integrity in industrial and medical settings.

Edgeboard Connectors Replacement Considerations

Cross-reference part numbers within the 807 Series for alternative position counts or tail bends. Verify that substitute models maintain the same 3.96 mm pitch and 1.57 mm board thickness tolerance. Ensure replacement receptacles match the gold-plated contact specification and DAP insulator material for equivalent performance.
