807-015-558-101

Edgeboard Connectors Overview

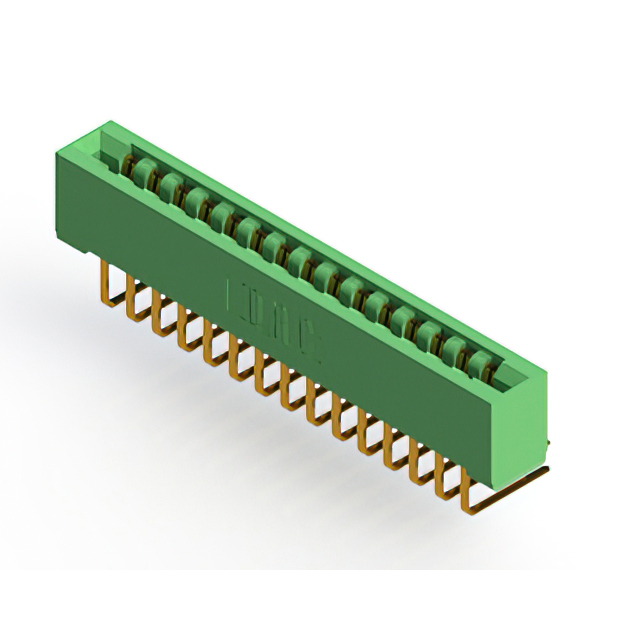

The EDAC Inc. 807-015-558-101 is a standard card edge connector from the 807 High Temp series, designed for high-temperature applications. It features 15 positions with a 3.96 mm (0.156 inch) contact spacing and supports a board thickness of 1.57 mm. The component utilizes gold-plated copper alloy contacts and Diallyl Phthalate insulation, rated for 5 A current. Operating within a temperature range of -40°C to +125°C, it employs semi-bellows contact types and wire wrap termination for reliable signal transmission.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction using Diallyl Phthalate insulation
• Gold-plated copper alloy contacts for enhanced conductivity
• Semi-bellows contact design ensuring secure mating engagement

Edgeboard Connectors Applications

• Industrial control systems requiring thermal stability
• Communication equipment interfaces
• Medical device circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against the manufacturer's official datasheet to confirm exact termination style and material specifications. Ensure compatibility with the target PCB thickness of 1.57 mm and confirm that the 3.96 mm pitch aligns with the design layout. Cross-reference the RoHS status directly with the latest documentation provided by EDAC Inc. prior to finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when operating environments exceed standard temperature limits, given its specified range up to 125°C. The 15-position count suits compact single-edge daughter boards. Verify that the wire wrap termination method matches the assembly process capabilities. Confirm that the 5 A current rating meets the electrical load requirements of the application circuit without derating concerns.

Edgeboard Connectors Part Context

This component belongs to the EDAC 807 series, which specializes in high-temperature card edge connectors. The series is characterized by robust materials like Diallyl Phthalate and precise 3.96 mm spacing. It serves as a specialized interconnect solution for demanding sectors where standard connectors may fail due to thermal stress or mechanical vibration.

Edgeboard Connectors Replacement Considerations

Consult the EDAC official catalog for direct substitutes within the 807 series. Verify pin count, pitch, and termination type before considering alternative part numbers.
