807-018-522-202

Edgeboard Connectors Overview

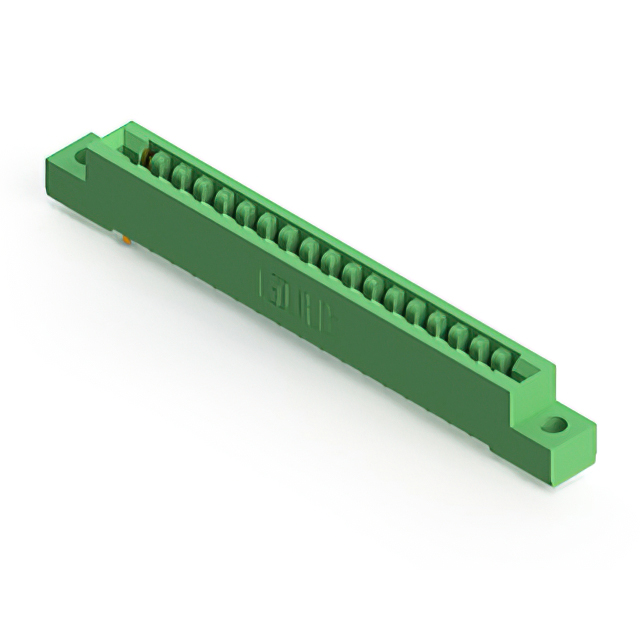

The EDAC Inc. 807-018-522-202 is a standard card edge connector from the 807 High Temp Series, designed for high-temperature applications. It features a dual female configuration with 18 positions and a contact spacing of 3.96 mm (0.156 inches). The connector utilizes gold-plated copper alloy contacts and a Diallyl Phthalate (DAP) housing. It supports a current rating of 5 A and operates within a temperature range of -40°C to +125°C. The unit has an insulation resistance of 5 GOhms and is constructed for reliable signal transmission in demanding environments.

Edgeboard Connectors Feature Summary

• High-temperature rated construction using Diallyl Phthalate housing material
• Dual row female contact configuration for double-sided board connection
• Gold-plated copper alloy contacts ensuring low contact resistance
• Vertical panel mount installation style for secure positioning

Edgeboard Connectors Applications

• Industrial control systems requiring thermal stability
• Telecommunications equipment with high-density interconnect needs
• Automotive electronics operating in extreme temperature ranges
• Aerospace and defense instrumentation modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer datasheet to confirm tail bend configurations and contact code variations. Ensure compatibility with the target PCB thickness and mounting requirements before ordering. Cross-reference the RoHS compliance status with the latest regulatory updates. Confirm availability through authorized distributors as supply chains may fluctuate. Validate electrical ratings against the specific application load requirements.

Edgeboard Connectors Selection Notes

Select this component when high-temperature performance is critical for the assembly. The 3.96 mm pitch suits applications requiring robust mechanical stability. Compare the 5 A current rating against peak operational loads. Consider the DAP housing material for chemical resistance. Evaluate the dual-row layout against available board space constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 807 series, specialized for high-temperature card edge connections. It complements other variants in the lineup by offering specific position counts and tail configurations. The series is widely used in ruggedized electronic systems where standard connectors might fail due to thermal stress or environmental exposure.

Edgeboard Connectors Replacement Considerations

Direct substitutes include EDAC 807-020-522-202 for increased positions or 807-018-556-278 for different tail bends. Verify pin count and pitch compatibility before substitution. Check housing material specifications to ensure thermal equivalence.
