807-030-431-103

Edgeboard Connectors Overview

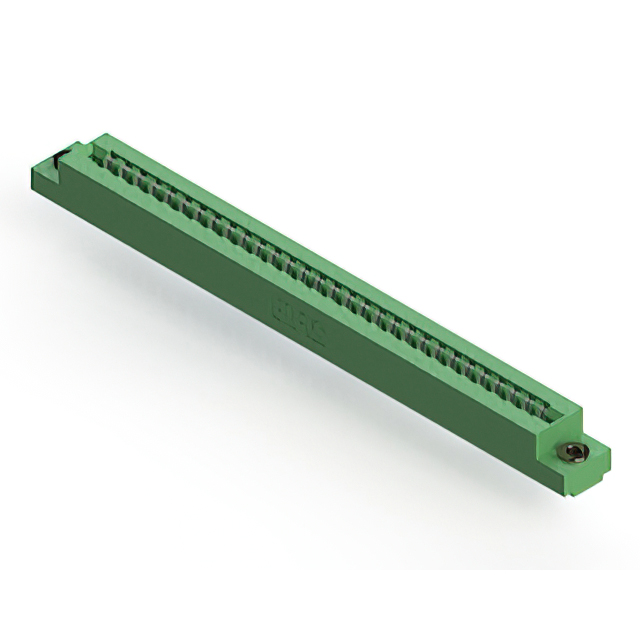

The EDAC 807-030-431-103 is a standard card edge connector receptacle from the 807 High Temperature series. It features 30 positions with a 3.96 mm pitch and supports PCB thicknesses of 1.57 mm. The component utilizes gold-plated copper alloy contacts and a Diallyl Phthalate (DAP) housing. Designed for through-hole mounting at a vertical angle, it offers a current rating of 5 A and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction using Diallyl Phthalate housing material
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Vertical through-hole mounting style for secure panel integration

Edgeboard Connectors Applications

• High-temperature electronic assemblies requiring robust interconnects
• Industrial control systems with strict thermal operating limits
• Military and aerospace equipment utilizing single-edge card boards

Edgeboard Connectors Procurement Notes

Verify the specific pin configuration and contact plating thickness against the official datasheet before procurement. Confirm that the target PCB thickness aligns with the specified 1.57 mm requirement to ensure proper mechanical engagement. Check for any recent supply chain restrictions or alternative sourcing options due to potential availability constraints.

Edgeboard Connectors Selection Notes

Select this model when high-temperature stability is critical for the application environment. Ensure the design accommodates the vertical orientation and through-hole termination method. Compare against other 807 series variants if different position counts or mounting angles are required for the specific board layout.

Edgeboard Connectors Part Context

This component belongs to the EDAC 807 series, which specializes in high-temperature card edge connectors. The series is characterized by its use of durable DAP materials and gold contacts, designed for demanding environments where standard connectors might fail due to thermal stress or oxidation.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC documentation for direct substitute part numbers within the 807 series. Verify compatibility regarding pitch, row configuration, and mounting style before considering alternatives.
