807-032-558-204

Edgeboard Connectors Overview

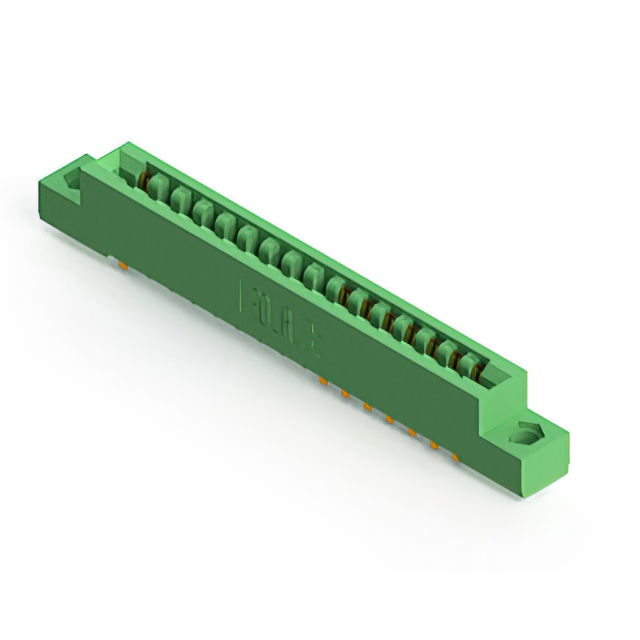

The EDAC Inc. 807-032-558-204 is a standard high-temperature card edge connector receptacle designed for reliable signal transmission in demanding environments. It features 32 positions arranged in a dual-row configuration with a 3.96 mm pitch, accommodating a board thickness of 1.57 mm. The contacts are constructed from copper alloy and gold-plated to ensure low resistance and corrosion resistance, rated for 5 A current. The housing utilizes Diallyl Phthalate (DAP) material, providing thermal stability within an operating range of -40 C to +125 C. This through-hole mounted component offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-row receptacle design supporting 32 positions for dense interconnect applications
• Gold-plated copper alloy contacts ensuring durable electrical performance
• High-temperature DAP housing suitable for harsh operational conditions

Edgeboard Connectors Applications

• Medical interconnect solutions requiring robust connectivity
• Agricultural technology systems exposed to harsh environments
• Industrial control equipment needing high-temperature reliability

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination style and plating specifications. Ensure compatibility with the target PCB stack-up regarding the 1.57 mm thickness requirement. Confirm RoHS compliance status through the manufacturer's latest certification documents before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface is required with a 3.96 mm pitch. It is appropriate for applications necessitating through-hole mounting and operation at temperatures up to 125 C. Compare against single-row alternatives if space constraints differ or if lower pin counts suffice for the circuit design requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 807 series of standard card edge connectors. The series is characterized by high-temperature capabilities and durable construction materials. Variations within the series typically differ by position count, row configuration, and termination method, serving as modular solutions for various electronic assembly needs.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 807 series parts with matching 32-position dual-row configurations. Verify that alternative part numbers maintain the same 3.96 mm pitch and 1.57 mm board thickness compatibility to ensure mechanical fit.
