807-033-459-101

Edgeboard Connectors Overview

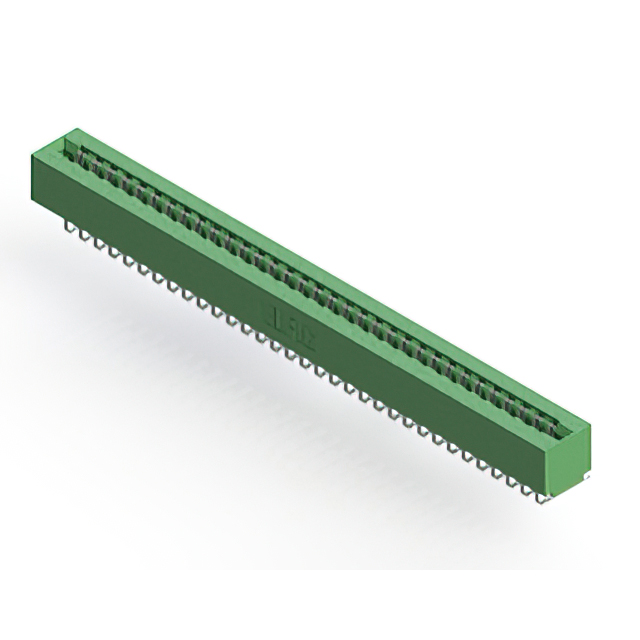

The EDAC Inc. 807-033-459-101 is a standard card edge connector receptacle featuring 33 positions with a 3.96 mm pitch. Designed for single-edge applications, it utilizes gold-plated copper alloy contacts and a green diallyl phthalate (DAP) insulator. The component supports a board thickness of 1.57 mm and operates within a temperature range of -40°C to +125°C. It offers a current rating of 5 A and an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction using DAP insulator material
• Gold-plated contacts ensure reliable signal transmission
• Vertical through-hole mounting configuration

Edgeboard Connectors Applications

• High-temperature electronic assemblies
• Industrial control systems
• Communication equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific contact code and tail length requirements against the official datasheet before ordering. Confirm RoHS compliance status and packaging details directly with the manufacturer or authorized distributors. Ensure the selected variant matches the required board thickness and mounting orientation for your specific design implementation.

Edgeboard Connectors Selection Notes

Select this connector when a 33-position interface with 3.96 mm spacing is required. Consider the high-temperature rating and DAP material properties for harsh environments. Verify that the single-edge, double-sided reading configuration aligns with the daughter board design and mechanical constraints of the host system.

Edgeboard Connectors Part Context

This component belongs to the EDAC 807 High Temp Series, designed for demanding thermal conditions. The series provides various position counts and mounting styles. The 807-033-459-101 specifically addresses needs for robust, high-reliability connections in space-constrained vertical installations requiring stable electrical performance over wide temperature ranges.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference guide for verified substitute part numbers. Ensure any replacement maintains identical pitch, position count, and mounting style specifications.
