807-034-559-204

Edgeboard Connectors Overview

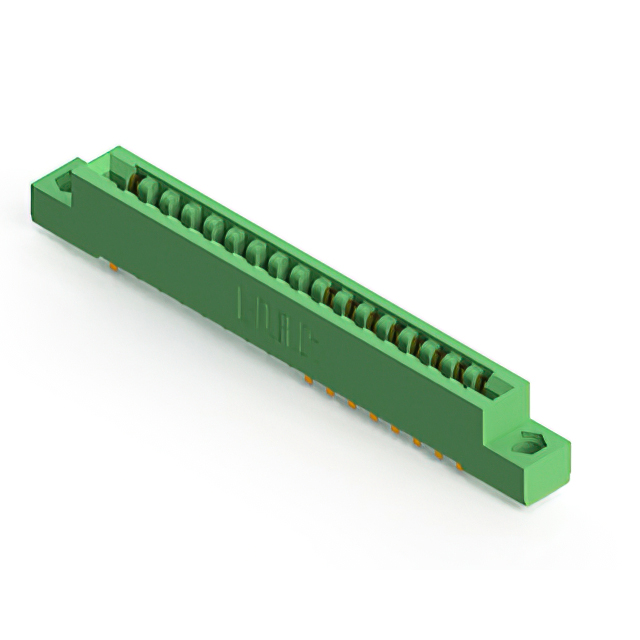

The EDAC 807-034-559-204 is a high-temperature standard card edge connector receptacle from the 807 Series. It features 34 positions arranged in a dual row with a 3.96 mm (0.156 inch) pitch. Designed for through-hole mounting at a right angle, it utilizes gold-plated copper alloy contacts and a green Diallyl Phthalate (DAP) housing. The component supports a current rating of 5 A and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for demanding thermal environments
• Dual-row configuration providing 34 contact positions for dense interconnects
• Right-angle through-hole termination for secure PCB integration

Edgeboard Connectors Applications

• Industrial electronic equipment interfaces
• Medical interconnect solutions requiring durability
• Agricultural technology systems operating in harsh conditions

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to ensure correct pin configuration and termination style. Confirm RoHS compliance status and lead times directly with authorized distributors, as availability may vary by region. Cross-reference the Mouser part number 587-807-034-559-204 for accurate sourcing information.

Edgeboard Connectors Selection Notes

Select this component when a right-angle, dual-row card edge interface is required for boards up to 1.78 mm thick. Ensure the application environment stays within the specified -40°C to +125°C operational range. Verify that the 3.96 mm pitch matches the daughter board design requirements before finalizing the selection.

Edgeboard Connectors Part Context

This part belongs to the EDAC 807 Series, which specializes in high-temperature card edge connectors. The series is engineered for reliability in medical and agricultural sectors, offering robust performance under stress. The 807-034-559-204 specifically addresses needs for higher density connections with right-angle mounting capabilities.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 807 Series Ordering Guide for compatible alternatives. Other parts in the series, such as 807-034-559-202 or 807-034-560-204, may offer different termination styles or row configurations while maintaining similar electrical characteristics.
