807-035-427-101

Edgeboard Connectors Overview

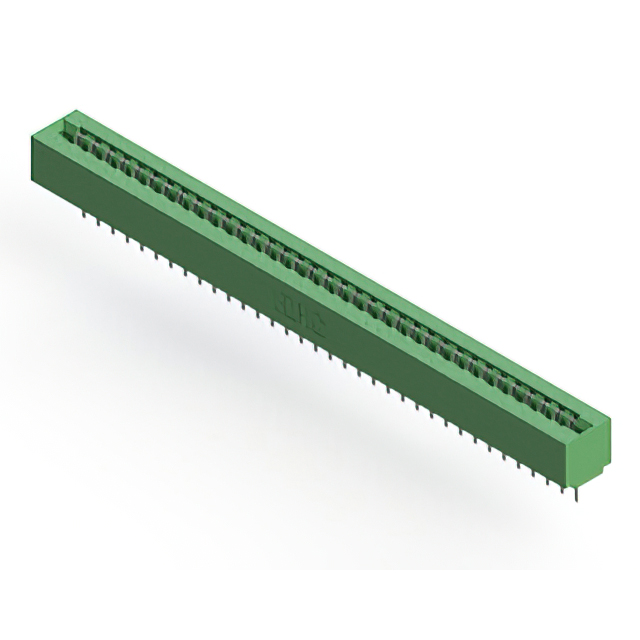

The EDAC 807-035-427-101 is a high-temperature standard card edge connector receptacle designed for reliable signal transmission in demanding environments. This component features 35 positions with a precise 3.96 mm (0.156 inch) pitch, accommodating single-edge PCBs. It utilizes gold-plated contacts to ensure low resistance and corrosion resistance, housed within a durable green Diallyl Phthalate (DAP) insulator. The unit supports a current rating of 5 A and operates effectively across a wide temperature range from -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction utilizing Diallyl Phthalate (DAP) insulation materials
• Gold-plated copper alloy contacts ensuring reliable electrical connectivity
• Single-row configuration optimized for standard single-edge circuit boards

Edgeboard Connectors Applications

• Industrial control systems requiring thermal stability
• Telecommunications equipment interfaces
• Automotive electronic modules

Edgeboard Connectors Procurement Notes

Verify the specific contact termination style and mounting orientation against the official datasheet before ordering. Confirm that the single-edge board thickness matches the connector's design specifications. Ensure the application environment remains within the stated operational temperature limits to maintain performance integrity.

Edgeboard Connectors Selection Notes

Select this model when a high-temperature rating is critical for the assembly. The 3.96 mm pitch suits standard industrial card edge applications. Verify compatibility with existing panel mount requirements and ensure the 5 A current capacity meets the system's power distribution needs without exceeding thermal limits.

Edgeboard Connectors Part Context

This part belongs to the EDAC 807 series, which specializes in high-temperature card edge connectors. The series provides robust solutions for harsh environments where standard plastic insulators might fail. The 807 series offers various position counts and mounting options while maintaining consistent electrical characteristics and material quality.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 35-position count, 3.96 mm pitch, and single-edge configuration. Verify that alternative components support the same high-temperature rating and gold plating specifications to ensure equivalent performance in thermal and electrical aspects.
