807-039-541-101

Edgeboard Connectors Overview

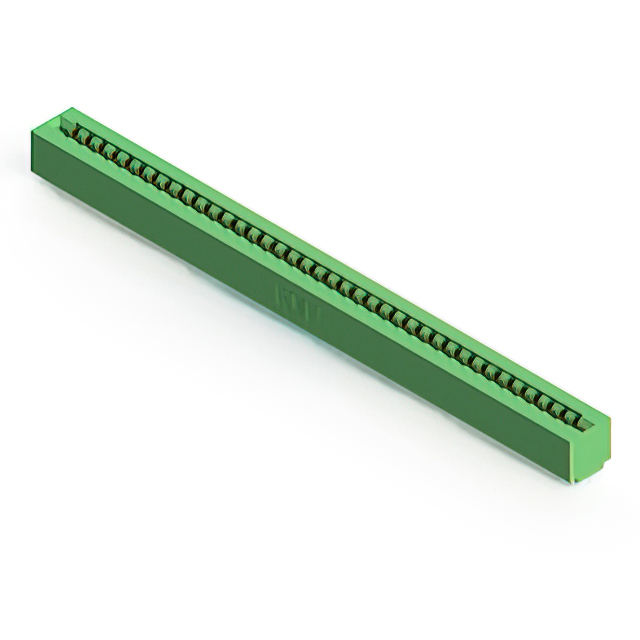

The EDAC Inc. 807-039-541-101 is a standard card edge connector receptacle designed for high-temperature applications within the 807 series. It features 78 positions with a contact spacing of 3.96 mm (0.156 inches). The connector supports dual-edge mating and utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. It is rated for a current of 5 A and operates within a temperature range of -65°C to +125°C. The housing is constructed from diallyl phthalate, providing necessary insulation and durability for demanding electronic environments.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction suitable for elevated thermal environments
• Dual-edge female configuration for secure daughter board connection
• Gold-plated contacts on copper alloy substrate for corrosion resistance
• Vertical mounting style with panel mount installation options

Edgeboard Connectors Applications

• Industrial control systems requiring robust connectivity
• Telecommunications equipment infrastructure
• Automotive electronics modules
• Medical device internal connections
• Aerospace and defense instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific pin count and termination style against project requirements before ordering. Confirm that the dual-edge receptacle design matches the target card edge geometry. Ensure environmental ratings meet operational temperature extremes. Check for RoHS compliance status if required by regulatory standards. Validate supplier authenticity through authorized channels to prevent counterfeit components.

Edgeboard Connectors Selection Notes

Select this component when high-temperature stability and durable electrical connections are critical. The 3.96 mm pitch accommodates standard board layouts while maintaining signal integrity. Gold plating offers superior performance in corrosive or humid conditions compared to tin finishes. Consider the vertical orientation for space-constrained panel installations. Evaluate the 5 A current rating against maximum load requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 807 series, which specializes in high-temperature card edge connectors. The series is engineered for reliability in harsh environments where standard connectors may fail. The 807 line typically features robust insulating materials and precise contact alignment mechanisms. This specific model represents a high-position-count variant within the family.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include EDAC 807-039-541-108 and 807-039-531-168. Verify mechanical dimensions and contact plating specifications when substituting. Ensure equivalent current and temperature ratings are maintained. Cross-reference pin configurations to guarantee functional compatibility.
