807-041-547-101

Edgeboard Connectors Overview

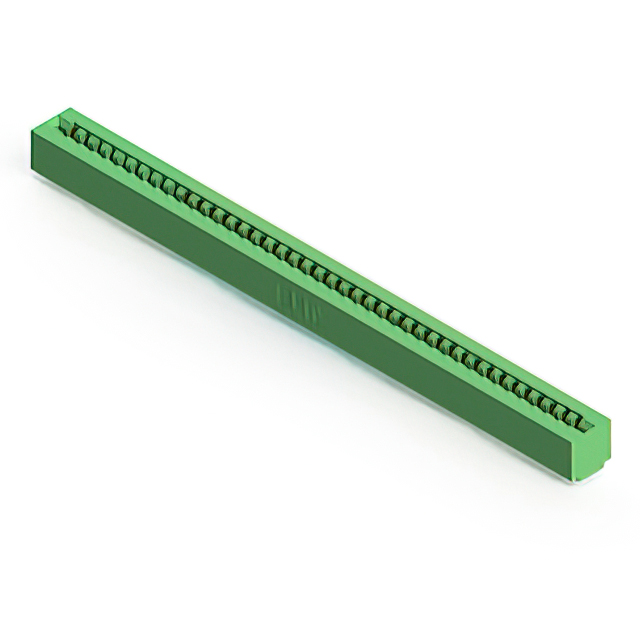

The EDAC Inc. 807-041-547-101 is a standard card edge connector receptacle from the 807 High Temp series. It features 41 positions with a 3.96 mm (0.156 inch) pitch and supports single-edge board insertion. The connector utilizes gold-plated copper alloy contacts for reliable signal transmission and is housed in green Diallyl Phthalate (DAP). Designed for through-hole mounting at a right angle, it accommodates PCB thicknesses between 1.37 mm and 1.78 mm. Rated for 5 A current, it operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction using Diallyl Phthalate housing material
• Gold-plated copper alloy contacts ensure durable electrical connectivity
• Right-angle through-hole mounting facilitates specific PCB layout configurations

Edgeboard Connectors Applications

• Medical interconnect solutions requiring high reliability
• Agricultural technology equipment operating in harsh environments
• Industrial control systems demanding stable connections

Edgeboard Connectors Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number with official EDAC documentation. Confirm that the specific suffix matches the required pin count and contact plating specifications. Ensure compatibility with the target PCB thickness and mounting style before procurement to avoid integration issues.

Edgeboard Connectors Selection Notes

Select this model when a right-angle, high-temperature card edge connector is required for single-edge boards. The 3.96 mm pitch and 41-position count define the interface density. Consider the DAP housing material for thermal stability and the gold plating for corrosion resistance in demanding operational environments.

Edgeboard Connectors Part Context

This component belongs to the EDAC 807 series, which specializes in high-temperature card edge connectors. The series is designed for robust performance in challenging conditions, including medical and agricultural applications. The 807 series distinguishes itself with specialized materials like DAP housing to withstand elevated temperatures beyond standard industrial limits.

Edgeboard Connectors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify if other variants within the 807 series with matching position counts and pitch dimensions serve as functional equivalents.
