807-043-505-101

Edgeboard Connectors Overview

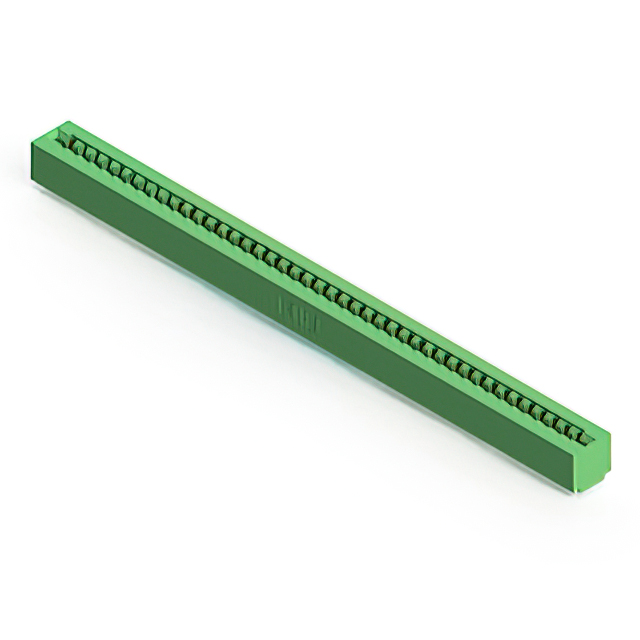

The EDAC Inc. 807-043-505-101 is a single-edge female card edge connector featuring 43 positions with a 0.156-inch (3.96 mm) contact spacing. Designed for through-hole mounting, it utilizes gold-plated copper alloy contacts and a green thermoplastic polyester insulator. The component accommodates printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). It operates within a temperature range of -40°C to +105°C and carries RoHS compliance.

Edgeboard Connectors Feature Summary

• Accepts standard 0.062 inch nominal thickness printed circuit boards
• Features low profile insulator body construction
• Utilizes gold-plated contacts for reliable signal transmission

Edgeboard Connectors Applications

• High temperature card edge interconnect systems
• Industrial control board connections
• Telecommunications equipment interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 307/357 Ordering Guide to ensure correct configuration. Confirm that the required PCB thickness aligns with the 0.062-inch specification. Check current availability status as distribution may vary by region. Ensure compatibility with existing assembly tools for through-hole soldering processes before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface is required for standard thickness boards. The 0.156-inch pitch provides adequate spacing for general signal routing. Consider the operating temperature limits for environmental suitability. Verify mechanical fit within the enclosure space due to the low profile design constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 807 series of high-temperature card edge connectors. The series is characterized by robust construction suitable for demanding environments. The specific model number indicates the position count, row configuration, and contact plating details defined by the manufacturer's coding system.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 307/357 Ordering Guide for direct substitutes. Cross-reference pin counts and pitch dimensions to ensure mechanical compatibility. Verify insulation material properties match application requirements.
