807-052-458-203

Edgeboard Connectors Overview

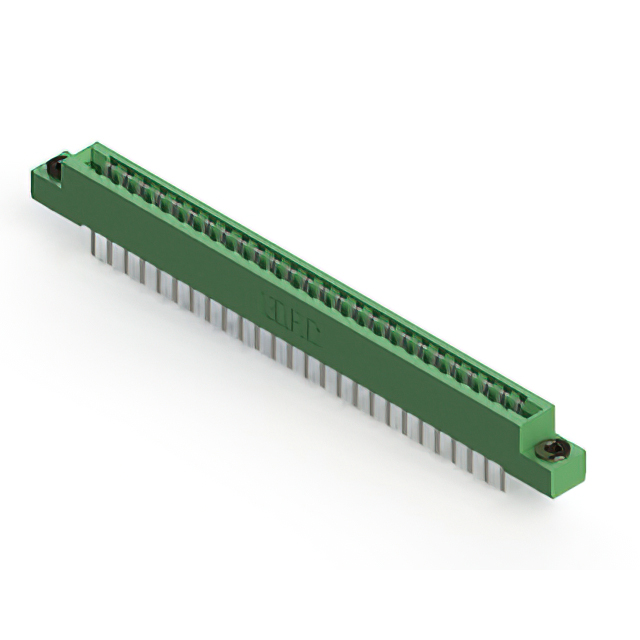

The EDAC 807-052-458-203 is a high-temperature standard card edge connector receptacle. It features 52 positions with a 3.96 mm (0.156 inch) pitch in a double-row configuration. Designed for panel mount installation, it utilizes gold-plated copper alloy contacts and Diallyl Phthalate (DAP) insulators. The component supports a current rating of 5 A and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction using Diallyl Phthalate insulators
• Gold-plated copper alloy contacts for reliable signal transmission
• Double-row receptacle design accommodating dual-sided daughter board connections

Edgeboard Connectors Applications

• Medical interconnect solutions requiring thermal stability
• Agricultural technology systems operating in harsh environments
• Industrial control panels utilizing card edge interface standards

Edgeboard Connectors Procurement Notes

Verify the specific contact code and tail length requirements against the official datasheet before procurement. Confirm that the panel mount orientation matches the system enclosure design. Ensure the 52-position double-row format aligns with the target PCB layout dimensions. Cross-reference the manufacturer's latest documentation to confirm availability status and lead times.

Edgeboard Connectors Selection Notes

Select this component when high-temperature performance up to 125°C is required for card edge applications. The 3.96 mm pitch and 52-position count define the physical interface constraints. Consider the DAP material properties for environmental resistance. Verify compatibility with existing mating cards regarding thickness and guide rail specifications.

Edgeboard Connectors Part Context

This part belongs to the EDAC 807 High Temperature Series, designed for demanding environments. It complements other connectors in the family by offering specific position counts and mounting styles. The series provides various termination options and row configurations to suit diverse industrial and medical interconnect needs.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC substitution guide for confirmed equivalent part numbers. Verify that any substitute maintains the 3.96 mm pitch and 52-position count. Ensure thermal ratings and material compositions match the original specifications.
