807-068-459-202

Edgeboard Connectors Overview

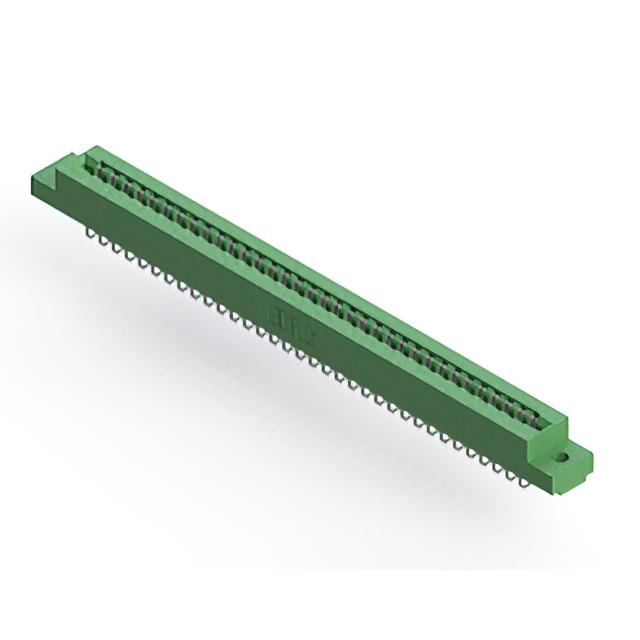

The EDAC Inc. 807-068-459-202 is a standard high-temperature card edge connector receptacle designed for panel mount applications. It features a dual-row configuration with 68 positions and a contact spacing of 3.96 mm (0.156 inches). The unit supports a board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts with solder pin termination. Rated for 5 A current, the housing is constructed from Diallyl Phthalate (DAP) to withstand operating temperatures ranging from -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature capability utilizing Diallyl Phthalate insulator material
• Dual-edge female contact design for double-sided daughter board reading
• Vertical panel mount installation style with solder pin termination

Edgeboard Connectors Applications

• High-temperature electronic interconnect systems
• Panel-mounted circuit board interfaces
• Industrial control module connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm contact tail geometry and plating specifications. Ensure the target application board thickness aligns with the 1.57 mm requirement. Confirm RoHS compliance status through official documentation prior to integration. Cross-reference the part number with the latest EDAC series guide to validate availability and manufacturing updates.

Edgeboard Connectors Selection Notes

Select this component when a vertical, high-temperature card edge solution is required for panel mounting. The 3.96 mm pitch accommodates standard daughter boards while the DAP housing ensures stability in elevated thermal environments. Verify that the 68-position count matches the interface requirements and that the 5 A rating satisfies the electrical load needs of the system design.

Edgeboard Connectors Part Context

This component belongs to the EDAC 807 Series, which specializes in high-temperature card edge connectors. The series is characterized by robust DAP insulation and reliable gold-plated contacts suitable for demanding industrial conditions. The 807-068-459-202 variant specifically addresses the need for high-density vertical interconnection in thermal-stressed applications.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 807 Series Ordering Guide for direct substitutes with differing position counts or tail configurations. Verify compatibility with existing panel cutouts and mating card dimensions before substitution.
