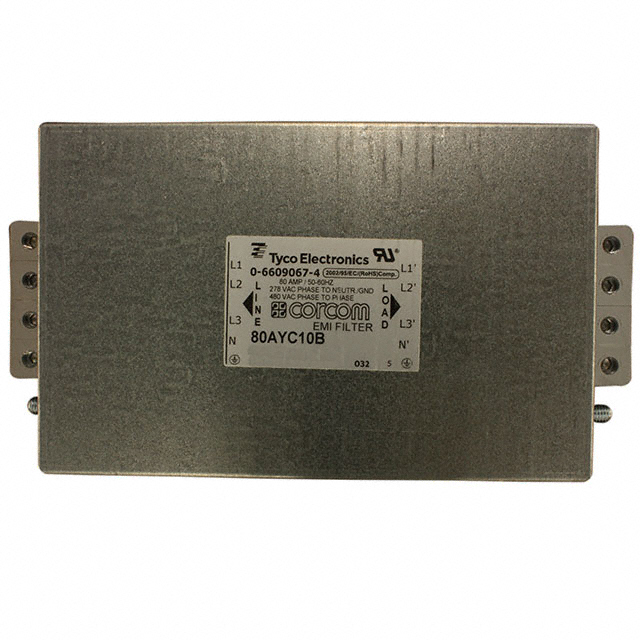

80AYC10B

Description：LINE FILTER 80A CHASSIS MOUNT
Series：AYC
Mfr：TE Connectivity Corcom Filters
Package：Bulk

SKU:fa4946e04a65 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 80A CHASSIS MOUNT
Series：AYC
Mfr：TE Connectivity Corcom Filters
Package：Bulk
Filter Type：Three Phase (Wye)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：80 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：UR
Operating Temperature：-10°C ~ 40°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：277 V
Voltage - Rated AC (Phase to Phase)：480 V

Download product information

80AYC10B

Overview

The TE Connectivity Corcom Filters 80AYC10B is a three-phase (Wye) EMC/EMI line filter designed for high-noise industrial applications. It supports a maximum current of 80 A and operates at frequencies of 50/60 Hz. The unit features single-stage filtering with chassis mount installation and terminal block termination. Certified by CSA, UL, and VDE, it complies with international standards including EN133200 and UL 1283.

Feature Summary

Designed for three-phase, four-wire WYE wiring configurations in noisy industrial environments
Provides effective protection for electronic equipment against electromagnetic interference
Complies with stringent international safety and performance standards

Applications

Frequency converters
Industrial machinery
High-noise industrial applications

Procurement Notes

Verify the specific voltage ratings and leakage current specifications against your system requirements before procurement. Confirm that the terminal block termination style matches your wiring infrastructure. Ensure the chassis mount dimensions fit your enclosure design. Check for any recent product change notices or end-of-life announcements from the manufacturer to ensure long-term availability.

Selection Notes

Select this component when a robust solution for three-phase WYE systems is required. It is suitable for applications demanding compliance with EN133200 and UL 1283 standards. Consider the 80 A current rating and single-stage filtering capability as primary selection criteria. Evaluate the chassis mount form factor against available panel space.

Part Context

This part belongs to the Corcom AYC series, which specializes in three-phase RFI power line filters for high-noise applications. The series offers filtering capabilities up to 180 amps maximum. These filters are engineered to protect sensitive electronic equipment in demanding industrial settings where significant electrical noise is present.
