Product Detailed Parameters
- Description：LINE FILTER 440VAC 80A CHASS MNT
- Series：KEB
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：80 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

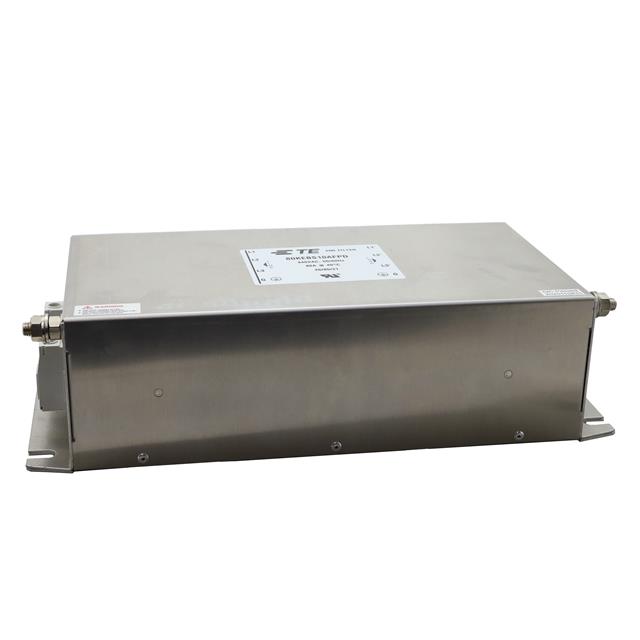

The 80KEBS10AFPD is a three-phase EMI/EMC power line filter manufactured by TE Connectivity Corcom. It features a single-stage design rated for 80 A current and 440 VAC voltage at 50/60 Hz operating frequencies. The unit utilizes chassis mount installation with terminal block connections. Key electrical specifications include a maximum leakage current of 20 mA. The component complies with UL and CSA safety standards, ensuring suitability for industrial power conditioning applications requiring robust electromagnetic interference suppression.
Feature Summary
- Single-stage three-phase EMI/EMC filtering architecture
- Terminal block connection interface for secure wiring
- Chassis mount configuration for stable installation
- Compliance with UL and CSA safety certifications
Applications
- Industrial machinery power supply protection
- Three-phase motor drive input filtering
- Factory automation control panel integration
- General purpose power line noise suppression
Procurement Notes
Verify the specific datasheet version before procurement to confirm current manufacturing status and compliance documentation. Ensure that the terminal block type matches the existing wiring infrastructure in the target application. Confirm that the chassis mounting dimensions align with the available space in the equipment enclosure. Validate that the 80 A rating meets the peak load requirements of the connected circuit without exceeding thermal limits.
Selection Notes
Select this model when a single-stage solution is sufficient for the required attenuation levels in three-phase systems. The 80 A rating makes it suitable for medium-power industrial loads. Consider the terminal block termination style if screw-down connections are preferred over quick-connect types. Verify that the 440 VAC rating is compatible with the local power distribution network frequency and voltage levels.
Part Context
This component belongs to the KEB series of power line filters from TE Connectivity Corcom. The series offers various current ratings and stage configurations for different noise suppression needs. The 80KEBS10AFPD represents a mid-range capacity option within the single-stage delta-connected filter lineup, designed for general industrial use.
Replacement Considerations
Check for direct substitutes within the same KEB series with identical current and voltage ratings. Verify compatibility of mounting holes and terminal spacing if replacing with a different manufacturer's part. Ensure any alternative maintains the same UL and CSA certification status for regulatory compliance.
