80KEBS10BFPD

Overview

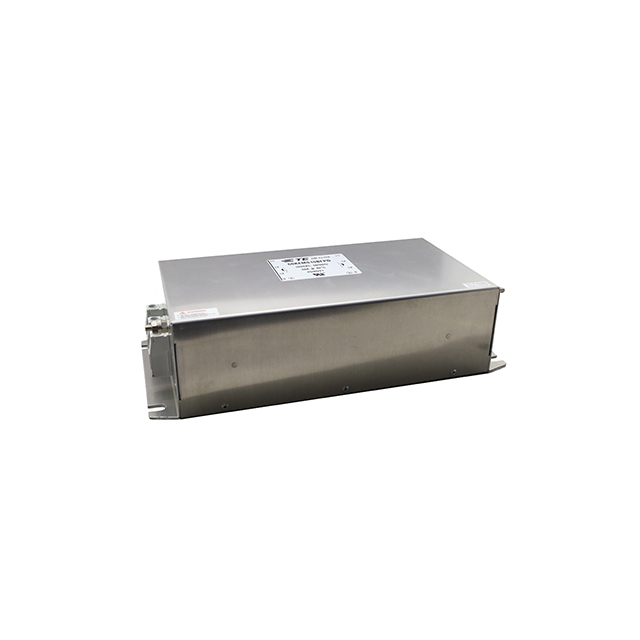

The TE Connectivity Corcom Filters 80KEBS10BFPD is a single-stage, three-phase EMI power line filter designed for delta configurations. It supports a nominal voltage of 520 VAC and handles a continuous current rating of 80 A at 50 Hz. The unit utilizes quick-connect terminals for circuit attachment and features chassis mounting for secure installation. Certified by CSA, UR, and VDE, it operates within a temperature range of -10°C to +40°C.

Feature Summary

• Single-stage attenuation architecture for standard EMI/RFI mitigation in three-phase systems
• Delta configuration optimized for industrial power distribution networks
• Robust chassis mounting design ensuring mechanical stability in heavy-duty environments

Applications

• Industrial automation machinery requiring electromagnetic interference suppression
• Climate control systems with three-phase power inputs
• General-purpose industrial equipment operating on 520 VAC delta networks

Procurement Notes

Verify the specific terminal type and mounting hardware requirements against your system schematic before ordering. Confirm that the 80 A current rating and 520 VAC voltage specifications align with your load profile. Ensure the chassis mounting style matches your enclosure design constraints. Check for any updated certification marks required by your regional compliance standards.

Selection Notes

Select this component when a single-stage solution is sufficient for your noise reduction needs in a three-phase delta setup. Consider the 80 A capacity to ensure adequate headroom for peak loads. Evaluate the physical dimensions and mounting orientation to fit within your available chassis space. Compare leakage current characteristics if sensitive medical or precision instrumentation is involved.

Part Context

This part belongs to the Corcom KEB series, which specializes in high-current three-phase filters. The series is engineered for robust performance in demanding industrial settings. It complements other Corcom offerings by providing standardized attenuation for general-purpose applications where complex multi-stage filtering is unnecessary.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing filter housings and terminal configurations if considering alternative manufacturers.
