Product Detailed Parameters
- Description：LINE FILTER 440VAC 80A CHASS MNT
- Series：KEB
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：80 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M8)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

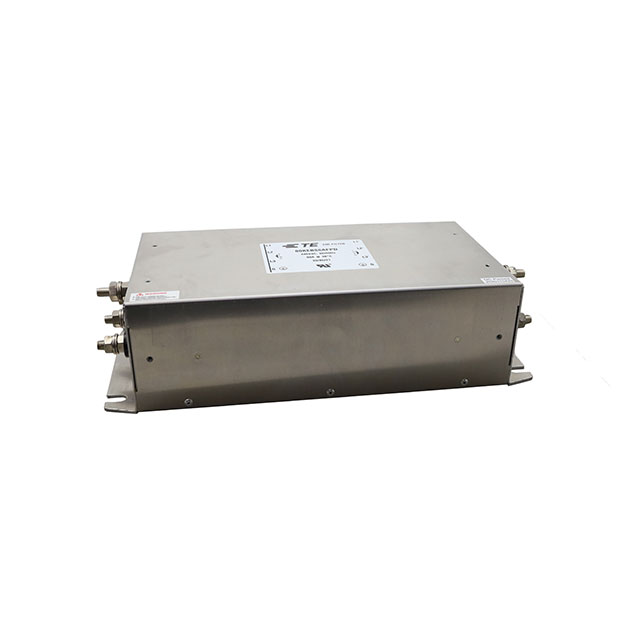

The 80KEBS6AFPD is a three-phase power line filter manufactured by TE Connectivity Corcom. It features a chassis mount design with screw termination for secure installation. The unit is rated for 440 VAC and supports a current capacity of 80 A at 50/60 Hz operating frequencies. Key electrical specifications include a maximum leakage current of 5 mA. The filter operates within a temperature range of -25°C to +85°C. Physical dimensions are 128 mm in length, 121 mm in width, and 50 mm in height. It holds UL and CSA compliance certifications.
Feature Summary
- Provides electromagnetic interference suppression for three-phase power systems
- Features robust chassis mounting with screw terminals for industrial durability
- Designed for high-current applications up to 80 amperes
Applications
- Industrial machinery power conditioning
- Three-phase motor drive protection
- Heavy-duty manufacturing equipment filtering
Procurement Notes
Verify the specific current rating requirement against the datasheet, as similar model numbers may indicate different capacities. Confirm that the chassis mounting style and screw termination type match the existing panel infrastructure. Ensure the voltage rating of 440 VAC aligns with the system's operational parameters before procurement.
Selection Notes
Select this component when a three-phase filter capable of handling 80 A is required. The chassis mount form factor is suitable for direct panel integration where space allows. Verify that the operating temperature range meets the environmental conditions of the installation site.
Part Context
This part belongs to the Corcom KEB series of power line filters. The series is designed for general-purpose EMI/RFI suppression in industrial environments. The manufacturer provides technical drawings and specification sheets for integration planning.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer for obsolescence notices or equivalent series replacements if this specific model is discontinued.
