Product Detailed Parameters
- Description：LINE FILTER 520VAC 80A CHASS MNT
- Series：KEB
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：80 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M8)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

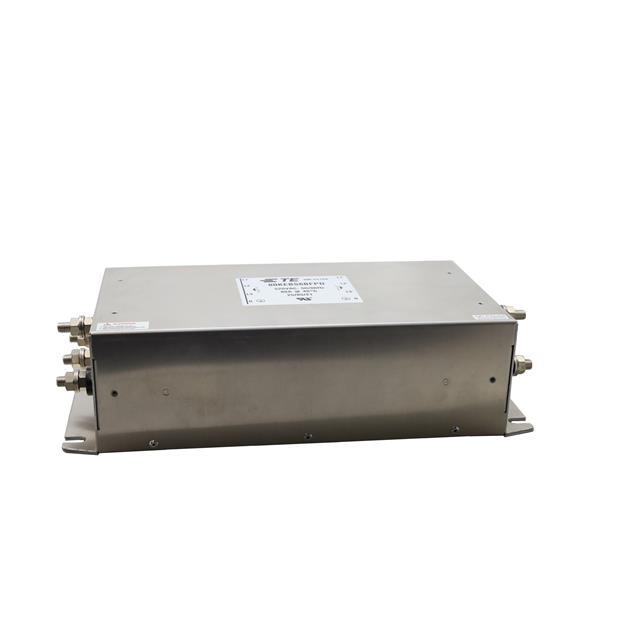

The TE Connectivity Corcom Filters 80KEBS6BFPD is a single-stage, three-phase power line filter designed for chassis mounting. It features a nut delta configuration with screw termination. The unit supports a rated voltage of 520 VAC and handles a current capacity of 80 A at 50 Hz. This component belongs to the KEB series and is intended for industrial applications requiring robust electromagnetic interference suppression.
Feature Summary
- Provides superior EMI/RFI attenuation for three-phase power lines
- Features a durable chassis mount design with nut delta construction
- Utilizes screw termination for secure electrical connections
Applications
- Industrial machinery power conditioning
- Three-phase motor drive systems
- Heavy-duty manufacturing equipment
Procurement Notes
Verify the specific voltage rating of 520 VAC and current capacity of 80 A against your system requirements. Confirm the chassis mount style and screw termination type match your enclosure design. Ensure the single-stage filtering capability meets your EMI suppression needs. Check for any updated compliance certifications required for your region before finalizing procurement.
Selection Notes
Select this model when a high-current, three-phase solution is required for chassis-mounted installations. The 80 A rating suits heavy industrial loads. Consider the physical dimensions and mounting hardware compatibility with your existing infrastructure. Evaluate if the single-stage performance is sufficient or if higher attenuation is necessary for sensitive environments.
Part Context
This component is part of the TE Connectivity Corcom KEB series, which specializes in high-performance power line filters. The series is engineered for demanding industrial environments where reliable noise suppression and high current handling are critical. The 80KEBS6BFPD variant specifically addresses three-phase applications with substantial power demands.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify mechanical fit and electrical specifications carefully if considering alternative manufacturers.
