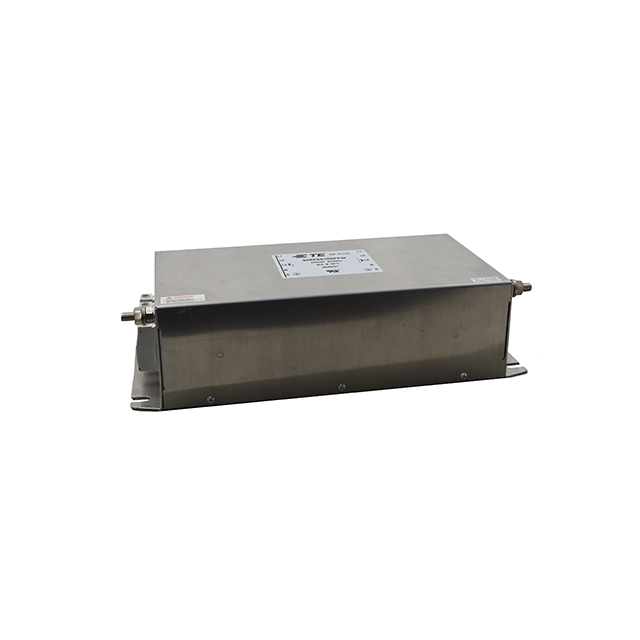

80KESS10AFPW

$352.13

Description：LINE FILTER 440VAC 80A CHASS MNT
Series：KES
Mfr：TE Connectivity Corcom Filters
Package：Box

SKU:fc05c3c41f51 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 440VAC 80A CHASS MNT
Series：KES
Mfr：TE Connectivity Corcom Filters
Package：Box
Filter Type：Three Phase (Wye)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：440V
Current：80 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UL
Operating Temperature：-25°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

80KESS10AFPW

Overview

The 80KESS10AFPW is a three-phase general-purpose EMI/EMC power line filter manufactured by TE Connectivity Corcom. It features a single-stage design rated for 80 A current and 440 VAC voltage at 50/60 Hz operating frequencies. The unit utilizes chassis mount installation with terminal block connections. Key electrical specifications include a leakage current of 6 mA. Physical dimensions are 350 mm in length, 160 mm in width, and 92 mm in height. The component operates within a temperature range of -25 °C to +85 °C and holds UL and CSA compliance certifications.

Feature Summary

Provides electromagnetic interference suppression for three-phase power systems
Engineered for high-current industrial applications up to 80 amperes
Constructed for secure chassis mounting with robust terminal block interfaces

Applications

Industrial machinery power conditioning
Three-phase motor drive input filtering
Commercial power distribution units

Procurement Notes

Verify the specific part number against official TE Connectivity documentation due to potential lifecycle changes. Confirm that the 80A rating aligns with system requirements, as similar models like the 75KESS10AFPW exist. Ensure compatibility with 440VAC systems and check for any recent product change notifications affecting availability or specifications.

Selection Notes

Select this model when a single-stage solution is sufficient for three-phase noise reduction. Compare the 80A capacity against load requirements to ensure adequate margin. Consider the chassis mount form factor and terminal block termination style for panel integration. Verify that the physical dimensions fit the designated enclosure space.

Part Context

This component belongs to the KES series of power line filters from TE Connectivity Corcom. The series offers various current ratings for three-phase applications. The 80KESS10AFPW represents a mid-range capacity option within this lineup, designed for general-purpose industrial environments requiring reliable EMI attenuation.

Replacement Considerations

The 75KESS10AFPW serves as a lower-current alternative within the same series. Verify if the reduced 75A rating meets operational needs. Cross-reference datasheets to confirm identical mounting dimensions and terminal configurations before substitution.
