Product Detailed Parameters
- Description：LINE FILTER 520VAC 80A CHASS MNT
- Series：KES
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：80 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

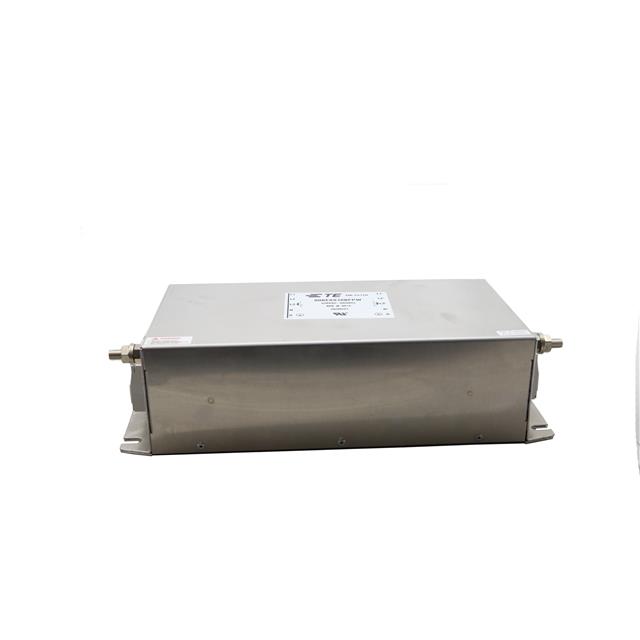

The 80KESS10BFPW is a three-phase single-stage power line filter manufactured by TE Connectivity Corcom. It features a chassis mount design with screw termination for secure installation. The unit is rated for 520 VAC and supports a current capacity of 80 A at 50 Hz. This component serves as an EMI/EMC filter designed to suppress electromagnetic interference in industrial power systems.
Feature Summary
- Provides three-phase EMI/EMC filtering for industrial applications
- Utilizes a robust chassis mount configuration for stable integration
- Employs screw termination style for reliable electrical connections
Applications
- Industrial machinery power conditioning
- Three-phase motor drive protection
- Factory automation power distribution systems
Procurement Notes
Verify the specific manufacturing lot and compliance documentation prior to procurement, as this component may be subject to end-of-life status or discontinuation notices from the manufacturer. Confirm that the terminal block interface and mounting dimensions align precisely with existing chassis infrastructure to ensure mechanical compatibility during installation.
Selection Notes
Select this model when a high-current three-phase solution is required for 520 VAC systems operating at 50 Hz. Ensure the application demands a single-stage filtering topology and can accommodate chassis mounting constraints. Verify that the 80 A continuous current rating meets the load requirements without exceeding thermal limits under expected operating conditions.
Part Context
This part belongs to the KES series of power line filters from TE Connectivity Corcom, which specializes in heavy-duty industrial filtration solutions. The KES series is engineered for demanding environments requiring robust noise suppression and high current handling capabilities across three-phase configurations.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult official TE Connectivity documentation for potential cross-reference options or updated series replacements.
