Product Detailed Parameters
- Description：LINE FILTER 440VAC 80A CHASS MNT
- Series：KES
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：80 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M8)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

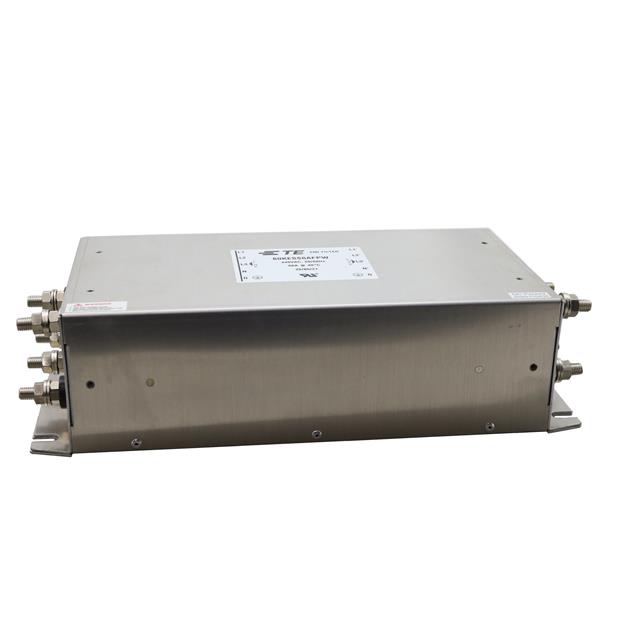

The TE Connectivity Corcom Filters 80KESS6AFPW is a three-phase EMI/EMC power line filter designed for chassis mounting. It features a rated current of 80 A and voltage ratings of 440 VAC and 520 VAC. The unit operates at frequencies of 50 Hz and 60 Hz with a leakage current of 6 mA. Physical dimensions are 350 mm in length, 160 mm in width, and 92 mm in height. It utilizes screw termination and complies with UL and CSA standards.
Feature Summary
- Provides electromagnetic interference suppression for three-phase power systems
- Engineered for robust chassis mounting applications
- Supports standard industrial operating frequencies
Applications
- Industrial machinery power conditioning
- Three-phase equipment noise reduction
- General purpose power line filtering
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels due to potential availability constraints. Confirm that the specific lot matches the required electrical specifications and physical dimensions for your installation. Ensure compliance with local safety regulations regarding UL and CSA certifications before deployment in critical infrastructure.
Selection Notes
Select this model when a high-current three-phase solution is required for chassis integration. Compare the 80 A rating against system load requirements to ensure adequate capacity. Verify that the 440 VAC rating aligns with the network voltage. Consider the physical footprint and screw termination style during mechanical design integration.
Part Context
This component belongs to the KES series of power line filters from TE Connectivity Corcom Filters. The series is characterized by high-current capabilities and standardized mounting configurations suitable for industrial environments. It serves as a specialized solution for managing electromagnetic compatibility in heavy-duty electrical systems.
Replacement Considerations
Consult official TE Connectivity documentation for verified substitute part numbers. Do not assume cross-compatibility with other series without explicit manufacturer confirmation.
