Product Detailed Parameters
- Description：LINE FILTER 520VAC 80A CHASS MNT
- Series：KES
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：80 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M8)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

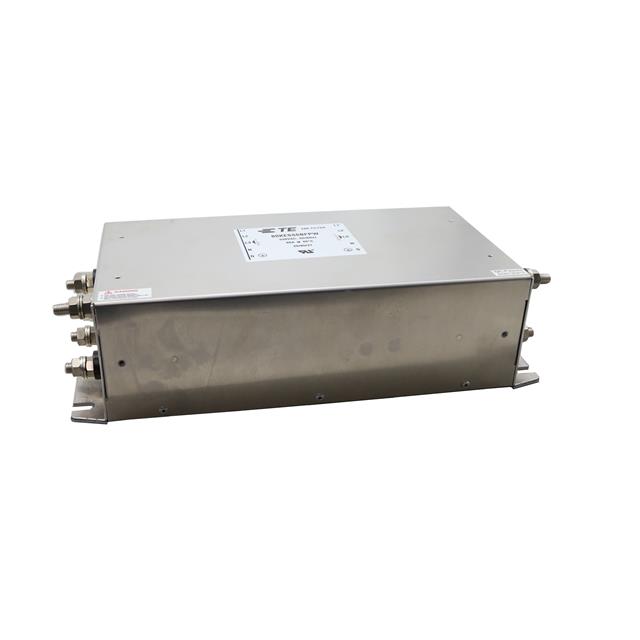

The 80KESS6BFPW is a three-phase general-purpose EMI filter manufactured by TE Connectivity / Corcom. It features a chassis mount installation style with screw termination. The component has a voltage rating of 520 VAC and a current rating of 60 A. It operates at frequencies of 50 Hz and 60 Hz, with a maximum leakage current of 5 mA. The unit measures 128 mm in length, 115 mm in width, and 50 mm in height. It complies with UL and CSA standards.
Feature Summary
- Provides electromagnetic interference suppression for three-phase power lines
- Designed for chassis mounting applications
- Utilizes screw termination for secure electrical connections
Applications
- Industrial machinery power conditioning
- Three-phase motor drive systems
- General purpose power line filtering
Procurement Notes
Verify the obsolete status of this part number before procurement planning. Confirm that alternative sourcing channels are available as standard distribution may be limited. Ensure compatibility with existing chassis mounting hardware and screw specifications. Validate that the 60 A current rating meets the specific load requirements of the target application without derating issues.
Selection Notes
Select this component when a three-phase EMI filter with a 60 A rating and 520 VAC capability is required. Consider the physical dimensions of 128 mm x 115 mm x 50 mm for enclosure space allocation. Verify that the screw termination style matches the wiring infrastructure. Ensure the operating temperature range of -25 C to +85 C suits the environmental conditions.
Part Context
This component belongs to the KES series of power line filters from TE Connectivity / Corcom. The series is designed for industrial applications requiring robust EMI/EMC filtering. The KES series typically offers high current ratings and durable construction for demanding environments. This specific model represents a three-phase configuration within that product family.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult TE Connectivity technical support for direct replacements or cross-reference options.
