8101

Overview

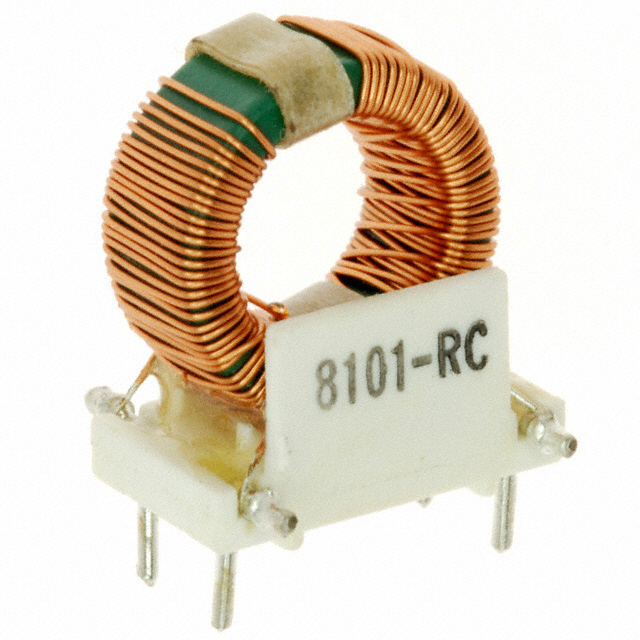

The Bourns Inc. 8101 is a through-hole common mode choke belonging to the 8100 series, designed for electromagnetic interference suppression in two-line circuits. It features an inductance of 4 mH at 1 kHz and supports a maximum DC current of 1.7 A with a DC resistance of 173 mOhm. The component utilizes a lead-free construction compliant with RoHS standards when designated with the -RC suffix. Physical dimensions are approximately 19.30 mm by 10.80 mm by 22.86 mm, suitable for standard PCB mounting applications requiring reliable magnetic filtering.

Feature Summary

• Provides effective common mode noise attenuation for dual-line signal or power paths
• Constructed with lead-free materials for environmental compliance
• Engineered for high current handling capability up to 1.7 A

Applications

• Electromagnetic interference filtering in industrial control systems
• Noise suppression in automotive electronic modules
• Signal integrity protection in consumer electronics interfaces

Procurement Notes

Verify the specific ordering suffix to confirm material composition and regulatory status. The base part number may denote non-compliant variants, while the -RC suffix explicitly indicates RoHS compliance. Ensure the selected variant matches the required lead-free specifications for your manufacturing process. Cross-reference the datasheet for exact mechanical tolerances before finalizing procurement orders.

Selection Notes

Select this component based on the required 4 mH inductance value and 1.7 A current rating. Confirm that the through-hole package fits the available PCB footprint constraints. Evaluate the DC resistance impact on circuit efficiency if used in low-voltage applications. Ensure the operating temperature range aligns with the system's thermal environment requirements.

Part Context

This component is part of Bourns' 8100 series of inductive components, which focuses on providing robust magnetic solutions for circuit protection and signal conditioning. The series includes various chokes tailored for different current and inductance needs, supporting diverse industrial and commercial applications.

Replacement Considerations

Check for equivalent common mode chokes from other manufacturers offering similar 4 mH inductance and 1.7 A ratings. Verify pin compatibility and physical dimensions to ensure direct replacement without PCB redesign.
